5TP-AC Fast switch
Product Description PRODUCT DESCRIPTION

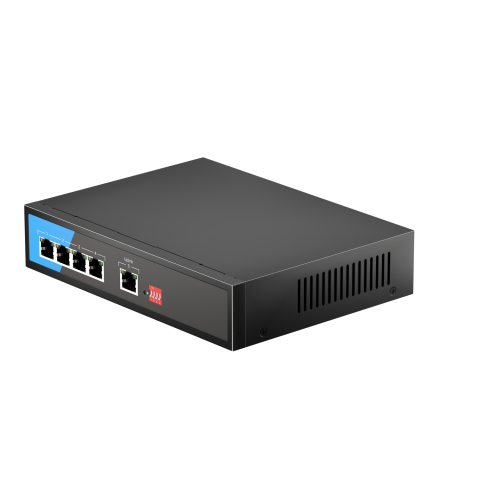

5TP-AC series unmanaged PoE switches have 5 10/100Mbps adaptive ports, of which 1-4 ports support PoE, a single port supports up to 30W, and the 5 port is uplink port. All network ports support MDI/MDIX auto-flip and wire-speed forwarding. The store-and-forward method is adopted to provide stable and reliable data transmission.
Product parameters PRODUCT PARAMETERS
|
Provider Mode Ports |
||
|
Fixed ports |
5*10/100 Base-TX |
|
|
Power interface |
AC220V |
|
|
LED Indicators |
P , active,speed |
|
|
|
||
|
Cable type&Transmission distance |
||
|
Twisted-pair |
0-100m/250M |
|
|
|
||
|
Network Topology |
||
|
Ring topology |
No Support |
|
|
Star topology |
Support |
|
|
Bus topology |
Support |
|
|
Tree Topology |
Support |
|
|
|
||
|
Electrical Specifications |
||
|
input voltage |
AC 100-240V 50/60Hz |
|
|
Total Power consumption |
≤65W |
|
|
|
||
|
PoE function |
||
|
Support standard |
802.3AF，802.3AT |
|
|
Power supply pin |
12+ 36- |
|
|
Support ports |
1-4 |
|
|
|
||
|
DIP function |
||
|
1 |
AI PoE( (Automatically detect port status and restart the remote PD) |
|
|
2 |
1-4 ports 250M long distance transmission |
|
|
3 |
1-4 ports isolation |
|
|
4 |
storm suppression |
|
|
|
||
|
Layer 2 Switching |
||
|
Switching capacity |
1G |
|
|
Packet forwarding rate |
0.744Mpps |
|
|
MAC address table |
2K |
|
|
Buffer |
384K |
|
|
Forwarding delay |
<5us |
|
|
MDX/MIDX |
Support |
|
|
|
||
|
Environment |
||
|
Operating temperature |
-10℃~+50℃ |
|
|
Storage temperature |
-40℃~+70℃ |
|
|
Relative humidity |
5%~95% no Support non-condensing |
|
|
Thermal methods |
Fanless design, natural heat dissipation |
|
|
MTBF |
100,000 hours |
|
|
|
||
|
EMC&INGRESS PROTECTION |
||
|
Surge protection of Ethernet port |
IEC 61000-4-5 Level 4（4/2KV）（10/700us） |
|
|
DIP |
IEC 61000-4-11 Level3 （10V） |
|
|
ESD |
IEC 61000-4-2 Level 4 （8K/15K） |
|
|
Free fall |
0.5m |
|
|
|
||
|
Mechanical Dimensions |
||
|
Product size |
220*162*37mm（LxWxH） |
|
|
Installation Method |
Desktop, Wall Mounted |
|
|
Weight |
0.82KG |
|
|
Accessories |
|
|
|
Accessories |
Equipment, certificate, manual, power cord |
|
