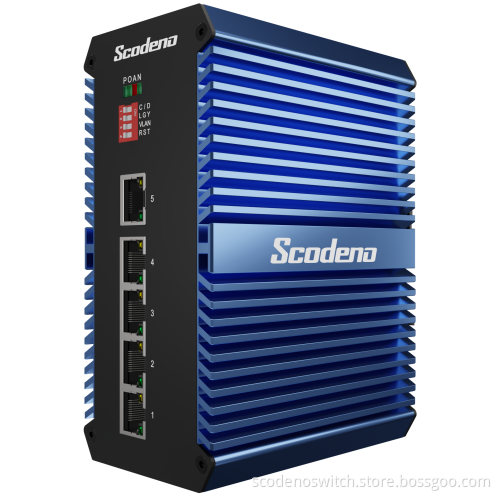

Industrial 5 Port 10/100BASE-T Unmanaged -40°C to 75°C DIN-Rail IP50 Ethernet Switch

Provider Mode Ports

Fixed port

5*10/100/1000 Base-T

Power interface

Phoenix terminal, redundant dual power supply

LED Indicators

PWR, OPT, NMC, ALM

DIP Switch

1 C/D

Reserve

2 LGY

Stand/Non-standard PoE Mode

3 VLAN

Port Isolation

4 RST

Reset

Cable Type & Transmission Distance

Twisted-pair

0-100m(CAT5e,CAT6)

Monomode optical fiber

/

Multimode (optical) fiber

/

Network Topology

Ring topology

Unsupported

Star topology

Support

Bus topology

Support

Tree Topology

Support

Electrical Specifications

Input voltage

DC10-58V

Total Power consumption

<6W

Voltage Alarm

Support

Layer 2 Switching

Switching capacity

10G

Packet forwarding rate

7.44Mpps

MAC address table

8K

Buffer

1M

Forwarding delay

<5us

MDX/MIDX

Support

Flow control

Support

Jumbo Frame

Support 10Kbytes

WatchDog

Support

Port Isolation

Support

Environment

Operating temperature

-40℃~+75℃

The device is tested for 8 hours at temperatures in 85°C

Storage temperature

-40℃~+85℃

Relative humidity

5%~95% non-condensing

Thermal methods

Fanless, natural cooling

MTBF

100,000 hours

Mechanical Dimensions

Product size

65X104X143mm

Installation Method

DIN-rail

Weight

0.7KG around

EMC & Ingress Protection

IP Level

IP50

Surge protection of Power

IEC 61000-4-5  Level X(10KV/10KV)(8/20us)

Surge protection of Ethernet port

IEC 61000-4-5  Level X(6KV/4KV)(10/700us)

RS

IEC 61000-4-3  Level 3(10V/m)

EFI

IEC 61000-4-4  Level 3(1V/2V)

CS

IEC 61000-4-6  Level 3(10V/m)

PFMF

IEC 61000-4-8  Level 4(30A/m)

DIP

IEC 61000-4-11  Level 3 (10V)

ESD

IEC 61000-4-2  Level 4(8K/15K)

Free fall

0.5m

Authentication

Authentication

CCC, CE, FCC, RoHS

Accessories

Accessories

Device, Terminals, Specification, Certificate, power adapter(optional)

Optional Model

XPTN-9000-65-5GP-X

5*10/100/1000Mbps RJ45 Port, PoE support 802.3af&at
