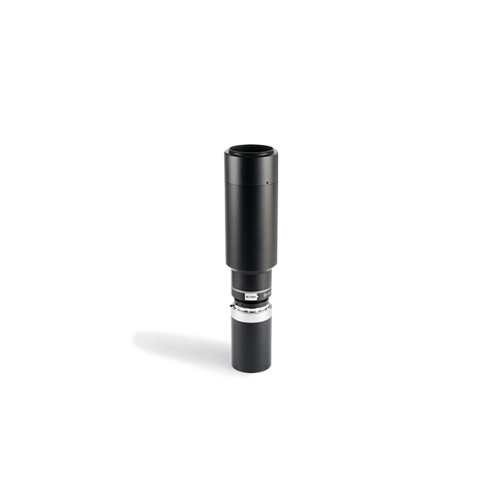

8k Line Scan (57.4mm) Telecentric Lens
-
$8000.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact NowSuitable for large format Area Scan Camera Line Scan Camera 16Kx3.5μm, 8Kx7μm, 8Kx5μm
Adjustable iris makes it possible to balance DOF and resolution in a perfect way
Super high resolution & low distortion
17 standard models available, various magnifications from 1.618X to 0.152X
M72 Mount, support customized mount
8k Line Scan (57.4mm) Telecentric Lens Specification
|
Model |
Optical Size |
Diagonal (mm) |
FOV Length (mm) |
Lens Length (mm) |
Max Diameter (mm) |
|
XF-PTL39057-M72-11.48-VI |
16k x 3.5μm |
57.34 |
377.2 |
1263.7 |
430 |
|
XF-PTL35057-M72-11.48-VI |
16k x 3.5μm |
57.34 |
337.3 |
1043.4 |
376 |
|
XF-PTL31057-M72-11.48-VI |
16k x 3.5μm |
57.34 |
298.6 |
971.2 |
340 |
|
XF-PTL26857-M72-11.48-VI |
16k x 3.5μm |
57.34 |
258.3 |
904.9 |
300 |
|
XF-PTL23857-M72-11.48-VI |
16k x 3.5μm |
57.34 |
230.3 |
846.3 |
270 |
|
XF-PTL19557-M72-11.48-VI |
16k x 3.5μm |
57.34 |
188 |
698.2 |
222 |
|
XF-PTL18257-M72-11.48-VI |
16k x 3.5μm |
57.34 |
175.9 |
671.8 |
210 |
|
XF-PTL15257-M72-11.48-VI |
16k x 3.5μm |
57.34 |
146.6 |
623.9 |
180 |
|
XF-PTL13757-M72-11.48-VI |
16k x 3.5μm |
57.34 |
132.4 |
584.8 |
166 |
|
XF-PTL12257-M72-11.48-VI |
16k x 3.5μm |
57.34 |
118 |
576.8 |
166 |
|
XF-PTL11057-M72-11.48-VI |
16k x 3.5μm |
57.34 |
106.4 |
538.1 |
130 |
|
XF-PTL09257-M72-11.48-VI |
16k x 3.5μm |
57.34 |
88.5 |
488.9 |
120 |
|
XF-PTL08057-M72-11.48-VI |
16k x 3.5μm |
57.34 |
77.3 |
464.2 |
104 |
|
XF-PTL06557-M72-11.48-VI |
16k x 3.5μm |
57.34 |
62.9 |
429.5 |
90 |
|
XF-PTL05557-M72-11.48-VI |
16k x 3.5μm |
57.34 |
53.1 |
413.9 |
79 |
|
XF-PTL04557-M72-11.48-VI |
16k x 3.5μm |
57.34 |
43.5 |
370.9 |
70 |
|
XF-PTL03757-M72-11.48-VI |
16k x 3.5μm |
57.34 |
35.4 |
338.8 |
70 |
As a camera lens manufacturer, we can provide kinds of industrial camera lens for sale, if you are interested, please leave us a message.
