Brief Introduction
GST401 which come in a compact design is a powerful real time fleet management and vehicle tracking system using high sensitivity GPS and wireless GSM-GPRS communication. This self-contained and autonomous tracking device including GSM module, GPS receiver, Li-ion battery and Multi analog input is able to be used as observing the location of vehicle ,control window-door-fuel-engine ,detect window-door-fuel-engine state, 2 ways voice communication, store position info ,detecting temperature ,detecting fuel costing.

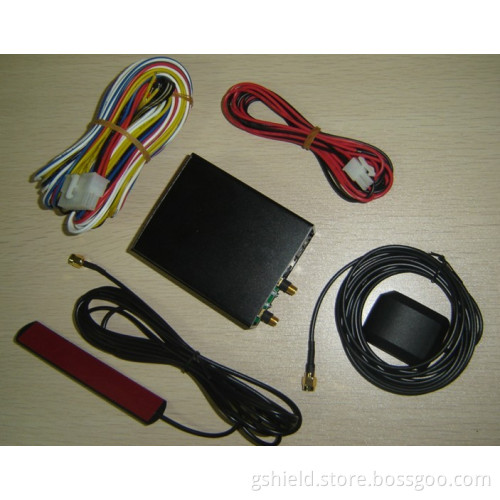

Package Contents
The basic package is including GST401,GPS antenna, GSM/GPRS antenna, cables socket . The optional accessory including :Relay connect to window-door-engine, speaker and microphone for 2 ways voice communication, temperature sensor, tank fuel level sensor.
Software Features
1),SMS mode,GPRS mode and SMS+GPRS mode
2),Position request via SMS or GPRS
3),Data logging capacity: up to max 144,000 point
4),Store in GSM blind area and forward when GSM signal re-establish
5),Mileage report
6),Upload/download settings, locations, and update firmware via GPRS
7),Configurable GEO-fencing
8),Configurable 2 analog input for status detection
9),Configurable 5 discrete input for status detection
10),Configurable 5 discrete output for remote control of vehicle
Hardware Features
1),GSM/GPRS core:
Simcom:SIM300D:900-1800-1900MHz
Simcom:SIM340D:850-900-1800-1900MHz
GSM-GPRS services: Data, SMS/GPRS class B, class 10,TCP UDP,IP
2),Physical characteristics
Dimensions(L*W*H): 104*73*29.8mm
Weight:approx:160g(including build-in battery)
3),Temperature range
Operation:-20 Celsius degree to +80 Celsius degree
4),Power sources
Input voltage:10~32 Volt DC regulated/Max 2A
Rechargeable Li-ion battery 1800mAh
5),Antenna
External GSM-GPRS antenna
External GPS antenna
Indication:2 LED indicator for GSM-GPRS and GPS status
More detail about this item,please contact us for corresponding manual.
GST401 which come in a compact design is a powerful real time fleet management and vehicle tracking system using high sensitivity GPS and wireless GSM-GPRS communication. This self-contained and autonomous tracking device including GSM module, GPS receiver, Li-ion battery and Multi analog input is able to be used as observing the location of vehicle ,control window-door-fuel-engine ,detect window-door-fuel-engine state, 2 ways voice communication, store position info ,detecting temperature ,detecting fuel costing.
Package Contents
The basic package is including GST401,GPS antenna, GSM/GPRS antenna, cables socket . The optional accessory including :Relay connect to window-door-engine, speaker and microphone for 2 ways voice communication, temperature sensor, tank fuel level sensor.
Software Features
1),SMS mode,GPRS mode and SMS+GPRS mode
2),Position request via SMS or GPRS
3),Data logging capacity: up to max 144,000 point
4),Store in GSM blind area and forward when GSM signal re-establish
5),Mileage report
6),Upload/download settings, locations, and update firmware via GPRS
7),Configurable GEO-fencing
8),Configurable 2 analog input for status detection
9),Configurable 5 discrete input for status detection
10),Configurable 5 discrete output for remote control of vehicle
Hardware Features
1),GSM/GPRS core:
Simcom:SIM300D:900-1800-1900MHz
Simcom:SIM340D:850-900-1800-1900MHz
GSM-GPRS services: Data, SMS/GPRS class B, class 10,TCP UDP,IP
2),Physical characteristics
Dimensions(L*W*H): 104*73*29.8mm
Weight:approx:160g(including build-in battery)
3),Temperature range
Operation:-20 Celsius degree to +80 Celsius degree
4),Power sources
Input voltage:10~32 Volt DC regulated/Max 2A
Rechargeable Li-ion battery 1800mAh
5),Antenna
External GSM-GPRS antenna
External GPS antenna
Indication:2 LED indicator for GSM-GPRS and GPS status
More detail about this item,please contact us for corresponding manual.
