eMMC eMCP 3 in 1 Socket For BGA153/169 BGA162/186 BGA221 Test Socket

eMMC eMCP 3 in 1 Socket For BGA153/169 BGA162/186 BGA221 Test Socket

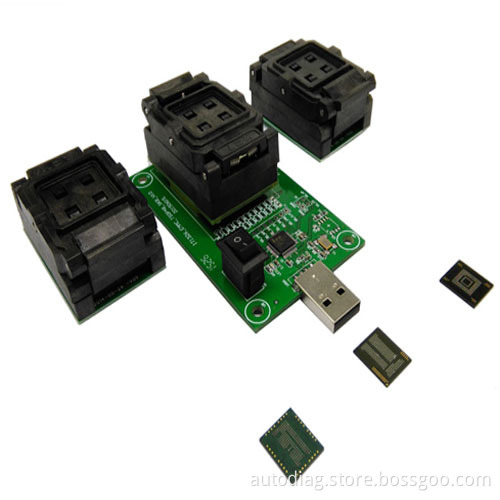

This eMMC/eMCP 3 in1 test socket is an easy use tool to connect chip and PC. Just like a U disk!

We provide a simple software which can chekc the capacity, read, write and verify, please send us an email if you need it

It is designed for test, debug, validation, data recovery and programming of eMMC.

It provides a compact test solution for eMMC used in applications such as mobile, data recorder, the Internet of things, etc.

1) Test, debug, validation, and programming of eMMC devices.
2) Failure analysis / System and wafer test.
3) Package and Chip qualification.
4) Production prototype / Data recovery.

eMMC eMCP 3 in 1 Socket Features:

1. Apply to eMCP and eMMC of for Sumsung, for Sandis k, for Toshiba, for Hynix, for Micron, MTK and for Intel
2. Apply to BGA153 BGA169 BGA162 BGA186 BGA221. (just need to change the coupled socket)
3. Easy operation by just inserting the USB into PC
4. Apply to eMCP/eMMC thickness of 0.8 to 1.5mm
5. BGA162/BGA186 socket With 17 pins and pin pitch 0.5mm

   BGA221 socket With 36 pins and pin pitch 0.5mm

   BGA153/BGA169 socket With 30 pins and pin pitch 0.5mm

6. Life cycle is around 25000 times
7. eMCP/eMMC data can be read and re-written easily
8. Support flat bottom and solder ball testing
9. This product is suitable for eMCP and eMMC size of 12x18mm, we also provide other four sizes of

                                     12x16mm
                                     11.5x13mm
                                     14x18mm
                                     11x10mm
