Wellon VP-798 Universal Programmer VP798 48pin ZIF Socket Programmer

Wellon VP-798 Universal Programmer VP798 48pin ZIF Socket Programmer

IC list of VP-798:  http://weilei@com@cn/VP798list.htm|

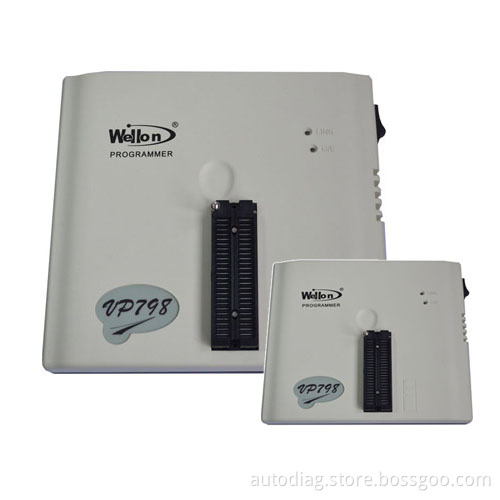

Wellon VP-798 programmer with 48-pin ZIF Socket

Other Universal Wellon Programmers in the range also support Microchip devices plus devices from other manufacturers.
See Wellon Programmer Range for an overview of the universal programmer range: Wellon VP-290 / VP-390 VP-996 Universal Programmer

VP-798 Universal Programmer Features

Dimensions: 168*180*32mm, weight: 450g. (plus PSU).
48 Pin ZIF socket with universal pin-drivers.
USB Interface so programmer can be used with LAPTOPS, PC, PS/2 or compatibles
Accepts most compiler outputs in JEDEC format including ABEL, CUPL, PALASM, TANGO PLD, OrCAD PLD, PLD Designer and ISDATA
Manages 16 and 32-bit word split (Set Programming)
Loads Microchip Hex Files
Features Test Vector capability and multiarray fuse map editor
Test TTL/CMOS logic ICs and Dynamic/Static Random Access Memory devices
Optimum programming for each individual device
Auto identifies TTL/CMOS logic IC
Automaticly identifies the manufacturer and type of E(E)PROMs
Supports 1.5v low voltage devices
Device insertion and poor-pin-contact check
Adapters are not needed for DIL devices
Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters available
Auto-run mode starts programming automatically on detection of chip insertion
Fast programming speed.
Supports IC Card programming
Supports WindowsXP, Vista, Windows7, Windows8, Win10 (32bit and 64bit)
Power Supply included

The software is very comprehensive, with lots of features that make it ideal for both production and development.

Device SELECT includes package information, adapter type, part number description etc.
LOAD file supports checksums, comprehensive file formats and address location
Flexible Verify options, including VCC+/-10%
Blank check, Erase, Program, verify, Auto Program, buffer edit and much more
Serial numbers and statistics

VP-798 Package list:

VP-798 48-pin universal programmer
USB cable
Power Supply Unit
Software CD
