Product Description
Product Description

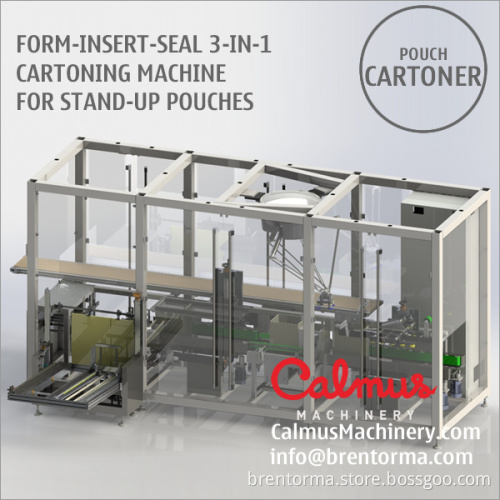

Form-Insert-Seal 3-in-1 Case Packer | Monoblock Cartoning Machine for Packaging Stand Up Pouches
This is a fully-automatic form-insert-seal monoblock cartoning machine for stand up pouches designed and manufactured for one of our long-term customers abroad. It works by erecting flat-fold cartons and sealing their bases to form cases, inserting filled stand up pouches in cases by delta robot (ABB IRB 360 FlexPicker) with help of a vision system, seal the case tops with tape, all fully-automatic. The case packer was designed to package 1 quart and 1 gallon stand up pouches respectively with cartons according for this customer, but we can manufacture different pouch cartoners to meet different customers' requirements. This monoblock case packer can be installed easily by customers themselves.
Features:
1. Form-insert-seal 3-in-1, with a smaller footprint.
2. Easy to install.
3. System pauses and alert if cartons or tapes are empty.
Specifications:
Capacity: 450 cartons, 2700 x 1 litre pouches/hour
Compressed air: 0.6-0.8MPa
Max tape roll diameter: 300mm
System weight: 6,000kg
Power supply: 3 phases, customized voltage
System dimensions: 5,300*2,800*2,800mm.
Power consumption: 5kW
This is a fully-automatic form-insert-seal monoblock cartoning machine for stand up pouches designed and manufactured for one of our long-term customers abroad. It works by erecting flat-fold cartons and sealing their bases to form cases, inserting filled stand up pouches in cases by delta robot (ABB IRB 360 FlexPicker) with help of a vision system, seal the case tops with tape, all fully-automatic. The case packer was designed to package 1 quart and 1 gallon stand up pouches respectively with cartons according for this customer, but we can manufacture different pouch cartoners to meet different customers' requirements. This monoblock case packer can be installed easily by customers themselves.
Features:
1. Form-insert-seal 3-in-1, with a smaller footprint.
2. Easy to install.
3. System pauses and alert if cartons or tapes are empty.
Specifications:
Capacity: 450 cartons, 2700 x 1 litre pouches/hour
Compressed air: 0.6-0.8MPa
Max tape roll diameter: 300mm
System weight: 6,000kg
Power supply: 3 phases, customized voltage
System dimensions: 5,300*2,800*2,800mm.
Power consumption: 5kW
