T3080 Chip Decoder Installation Instruction
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
-
Advantage:
-
1.Use the original ink cartridge without chip
2. Reset data from mainboard , the cartridge can be show full after refill ink
3. Save much money for working !
Installation Instruction:
1.Step1:Tear open the right of printer cover.

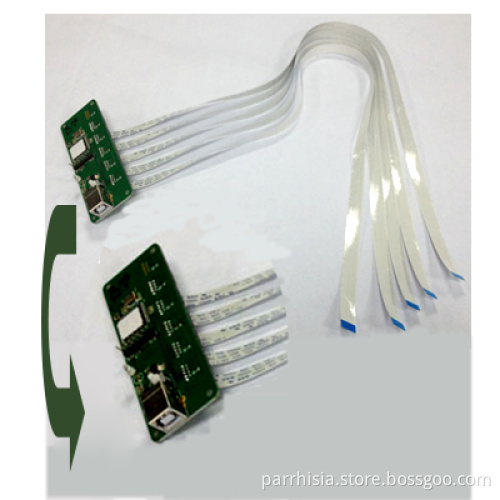

2.Step2:Take out chip decoder , installation the 9 pin flat cable as Figure.
3.Step 3 :As figure, pull off the oringal 9 pin flat cable , install the chip deocder flat cable onto the printer mainboard.
4.Step4: Fixed tear -open flat cable with glue, Prevent short circuit.
5.Step5: Take off the original cartridge chip from cartridge ,and install the cartridge into the printer.
6.Step6: Press chip decoder button and turn on the printer power.
7.Step 7 : Close the printer ink hatch cover when the printer display 'ink hatch is openning'.
8.Step8:As Figure ,printer can recognize ,and work well.
Notice :
1.Don't strand or bend the flat cable when operating Step 2 and 3
2.When operating Step3 , Only need pull off 5 lines flat cable, top 2lines and bottom 3 lines.
3.Please turn on the printer power when the chip decoder light on red.
4.When printer working , don't pull off USB connecting line and press chip decoder button, and insure the chip chip decoder is lighting on red.
5.When the printer ink is empty , you only need press the button and open the cartridge hatch cover , press down the chip decoder switch,when light on red regular , close the cartridge hatch cover ,after that , the ink volum will display full.
