Intellient system of security alarm

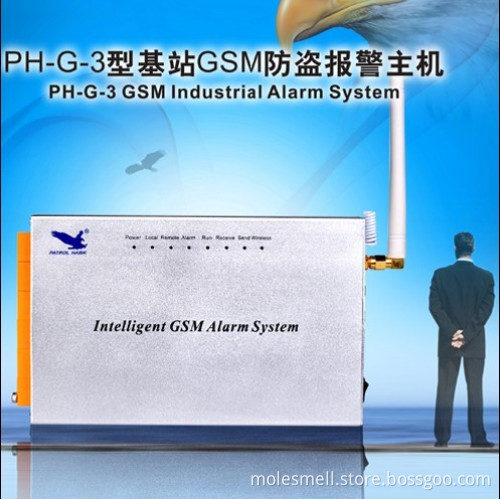

Metal case Alarm System for factory

Main features:

With wavecome double frequency GSM module
8 wired guarding zones and 2 wireless guarding zones
Can program open/closed alarm of digital inputs
Digital inputs are adopted optical-coupled isolators, which can prevent external high voltage from destroying internal components
Send SMS automatically to report the state of digital input when it returns normal status
Send SMS to 3 preset mobile phone numbers while alarming
Auto-dial 3 preset phone numbers while alarming and monitor the sound at site
Modify zone name and inquire status of alarm host by SMS demand
With standby rechargeable battery and external power failure alarm
Aluminum alloy casing
Connect with alarm center through GSM network

Standard package includes:
One alarm host (main unit)
One wireless PIR sensor
One magnetic door/window contact
Two remote controllers
One wireless keyboard
One siren
One AC adapter
One English user manual

Main unit parameter:
GSM network frequency: 850/1900MHz or 900/1800MHz
External power failure alarm start-time: less than 2s
Alarm response time
Less than 8s (GSM in normality)
Power requirements:
Input: 110 to 220V AC, 50 to 60Hz
Output: 9 to 12V
Standby battery: 8.4V DC
Standby battery working hours: more than 10 hours
Working power consumption: less than 5W

Working conditions:
Operating temperature: 20 to 60°C
Humidity: 20 to 95%
Accessories parameter:
Wireless frequency: 315±0.2/433±0.2MHz
Coding type: jumping code
Remote controller: 12V DC
Indoor siren: 12V DC
Door/window magnetic contact: 12V DC
PIR sensor: 3V (two 1.5V batteries inside)
Smoke detector: 9V DC
Gas detector: 9V DC
Shock sensor: 12V DC(four 1.5v batteries inside)
Emergency button: 12V DC
