Product Description

Wave Solder Products

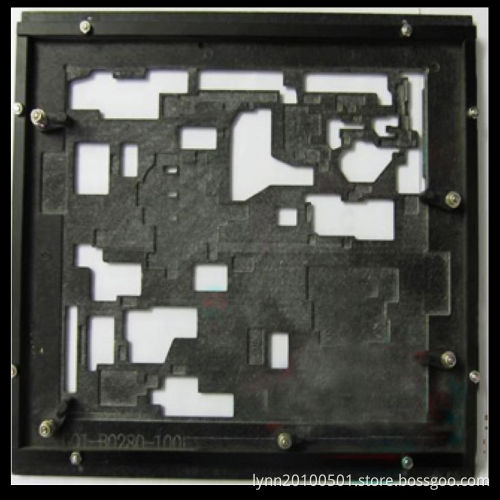

Selective Wave solders pallets

Wave soldering of through-hole components continues to be a viable and necessary process in printed circuit board manufacturing. Efficient and cost effective, wave soldering will be around for a long time into the future.

CATOS complete range of wave solder pallets, fixtures and tooling will stand up to your lead free requirements and optimize your wave solder process, assisting you in maximizing your yields and improving your overall process reliability.

Benefits

Wave Solder Pallets provide strong, stable support for the PCB throughout the wave solder process
Wave Solder Pallets permit wave solder processing of through-hole components while masking solder-side SMT components and critical board features from molten solder
Wave Solder Pallets provide thermal protection for printed circuit board areas that are heat sensitive
Wave Solder Pallets allow processing of odd-shaped PCB's through conveyor system
Wave Solder Pallets prevent topside component movement throughout wave solder
Wave Solder Pallets align and position topside components throughout wave solder
Wave Solder Pallets increase assembly production by eliminating hand gluing and masking operations
Wave Solder Pallets ensure higher quality, repeatable process results
Wave Solder Pallets reduce bridging and skipping solder defects
Wave Solder Pallets provide safe, easy, ergonomic handling of PCB

Features

Maximum possible "Knife Edge" beveling of fixture openings, provides the best possible solder flow to component leads
Wave Pockets and Solder Channels promote better solder flow
Ergonomic PCB and component holddowns.
Pallet design keeps bottom of circuit board coplanar with the conveyor
ESD composite construction protects sensitive components by providing controlled static discharge
Free PCB pocket covers provided with multi-up fixtures
