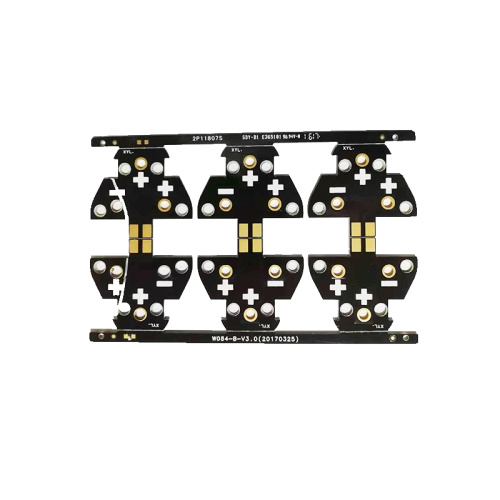

Aluminum Base Copper Clad Laminated Sheet (AL CCL)

What are Aluminium PCBs used for?

The aluminum substrate is generally composed of three layers of circuit layer, insulating layer and metal layer. It is a kind of metal copper plate with good heat dissipation function. It is also designed as a double-layer board and a multi-layer board, High Quality PCB Quickturn Products,custom circuit board cost manufacturing,but it is generally a relatively high-end place. Used.



　　Characteristics of aluminum PCB


　　 1. It is a low-alloy and high-plasticity alloy plate, which has good thermal conductivity, insulation and processability. It is used in buile-up printed board circuits and is suitable for dispersing

The heat treatment is very effective, and electrical products do not need to install a radiator.


　　2. When used in electrical products, it can effectively reduce the operating temperature of the article, improve the work efficiency of the product, and make the electrical product

Longer life span.

　　3. Compared with the ceramic substrate printed board, the hardness is relatively large, not easy to break, making the machine durable, and the density is small, so it is in production

It occupies a small position in theQuickturn printed circuit board production.
