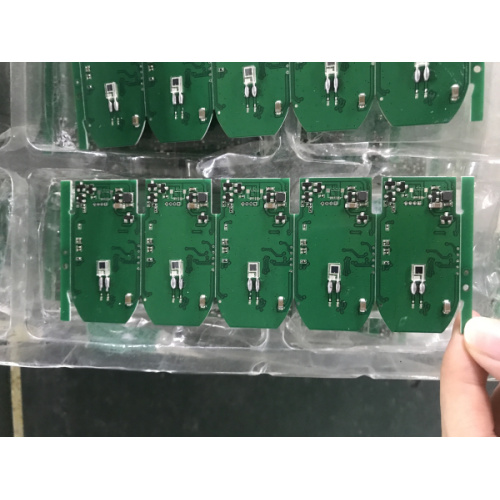

Pulse Oximeter Fingertip PCB

What is polyimide PCB?

Looking for materials to replace traditional PCB materials? In recent years, for those who need products other than conventional FR4 boards, polyimide PCB has become one of the most popular choices. You need to understand these products and what printed circuit board manufacturers can do with these products.
Polyimide board is a synthetically produced plastic with excellent strength and temperature stability. This makes it ideal for use in electronics, aircraft parts, sporting goods and other commodities.
You ask, besides polyimide, what else is made of PCB? PCB uses a variety of different materials, but the average PCB board material is a viable plastic that the company decided to use for printed circuit boards.
Polyimide and polyamide: Polyimide and polyamide are different materials. Polyimide is a synthetic resin, while polyamide is a synthetic polymer, which usually performs better in threaded forms (such as nylon).
Type of polyimide
This is the most common type of polyimide currently on the market.
Pure polyimide
Sometimes called second-generation polyimides, pure polyimides do not contain brominated flame retardants or other additives. Compared with most other polyimides, this makes them extremely thermally stable and more resistant to temperature changes. Although not the latest version, pure polyimide is still widely used due to its overall strength.
Third generation polyimide
The third-generation polyimide is newer than pure polyimide and contains additives that can improve its flame resistance, which is an important inhibitor to prevent electric fire. Their thermal stability is not as good as pure polyimide, but their production time is also faster, which is ideal for mass production of Flame resistant PCB.
Filled polyimide
The filled polyimide contains one or more filler materials that help resist shrinkage of the resin. Certain types of polyimide are easily broken during curing or drilling, so the long-term stability of the product can be maximized.
Low flow polyimide
Polyimide with low fluidity does not have so much flexibility and is very suitable for printed circuit boards that need to remain rigid in harsh environments. When conventional materials are not enough, low-flow polyimide is mainly used as a special material for PCB solutions.
