Reverse phase control 1200W dimmer with Slave function

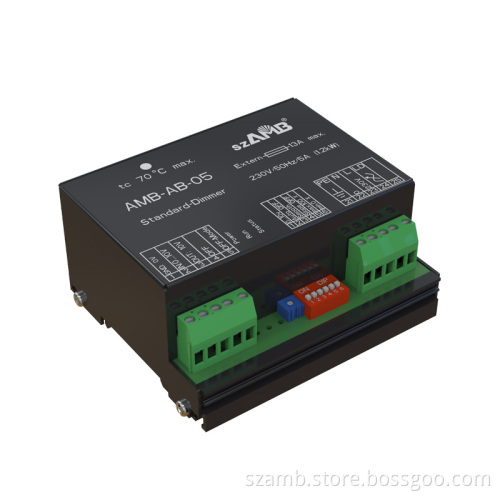

The AMB-AB-05 is a digital dimmer with reverse phase control, which on one hand can be driven in various ways, while on the other hand it can also regulate different loads:

• Driven via potentiometer from the internal voltage source, by an external voltage source or also from a sink current source.
• Control of incandescent lamps and high-voltage halogen lamps, as well as low voltage halogen lamps with electronic transformer.

An automatic or manual switch-off function extends the range of application. The AMB-AB-05 has a controlled (dimmable) output with an integrated on/off switching function.

Features

• Improves animal welfare
• Temperature rise less than 25oC, natural heat dissipation
• Small volume, track type installation
• 0 ~ 10V input, AC back edge phase cutting
• Increase input signal smoothing
• Add slope function
• Dial the code dimmer,Support 2 ~ 6 dial switch function customization
  Support 4 / 5 terminal function customization
