High Definition Switchable Pdlc Smart Film In Roll
-
$55.001-49 Square Meter
-
$48.0050-99 Square Meter
-
$45.00≥100 Square Meter
- Min. Order:
- 1 Square Meter
- Min. Order:
- 1 Square Meter
Your message must be between 20 to 2000 characters
Contact NowProduct Description
PDLC Smart Film / Switchable Glass
(1) Structure diagram:
Yuguang Switchable Transparent Glass , refered to as STG, Smart Tint Fim this product is made by the dry process
of gluing glass, and the switchable transparent film(STF) is glued between two pieces of glass. Smart Tint Fim The glass
meets the national standard for laminated standard Switchable Glass.
(2) Exterior structurel dimensions:
Glass thickness +0.76mm(EVA)+0.44mm PDLC film+0.76mm(EVA)+ Glass thickness(Glass thickness:5mm-12mm)
Note: Tpye of glass: super wihte, white, fireproof, Low-E coated glass etc.
Extra Transparency Self Adhesive Switchable Film
Product Parameters
|
Item |
Mode | Specification | |
| Optical Parameter | Visible Light Transmittance |
Power on |
>83% |
|
Power off |
>53% |
||
|
Parallel Light Tansmittance |
Power on |
75% |
|
|
Power off |
<2% |
||
|
Haze |
Power on |
<4% |
|
|
Power off |
>95% |
||
|
Viewangle |
Power on |
>150° |
|
|
Electrical Parameter |
Operating Voltage |
Power on |
AC48V-65V/ 50Hz |
|
Response Time |
Power off-on |
<200ms |
|
|
Power Dissipation |
Power off-on |
6-8 W/㎡ |
|
|
Size Parameter |
Thickness |
0.38mm |
|
|
Maximum Size |
6000mm*2000mm |
||
|
Operating Parameter |
Operating Temperature |
-30°C-50°C |
|
|
Storage Temperature |
-40°C-70°C |
||
|
Service Times |
Power on |
>12 years |
|
|
Switching Times |
|
>2 millions |
|
High Transparent Pdlc Switchable Glass Film
Application
Factory

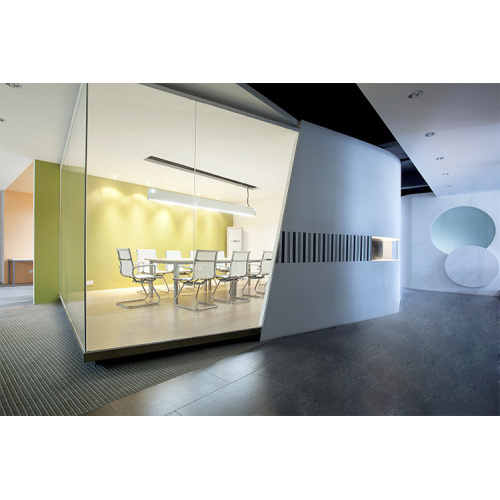

Smart Film In Building Glass
After sales & clients comments
FAQ
1.Does smart film privacy film blocks harmful UV rays?
Yes, it can block over 98% of the harmful UV rays.
2.Is smart film energy efficient?
Yes, it's a green product that only consumers 6-8 W/㎡.
3.Can customers install smart film by themselves?
Yes, we offer a complete installaion kit if needed， meanwhile，we supply instruction video for customer
preview Pdlc Electric Smart Film
4.How can I purchase or get a quote?
Please send inquiries to us. You can also add WhatsApp or Wechat. WeChat/WhatsApp ID: 0086-18927438513.
5.What is the difference between self-adhesive PDLC film and PDLC film?
Self-adhesive PDLC film can be pasted on the normal existing flat glass directly. PDLC film is the material which
can be processed to smart PDLC glass. It must be putting into two pieces of glass, by EVA films’ bonding so as to
form a sandwich structure Pdlc Switchable Glass Film.
6.Do you offer smart glass?
Yes, we customized smart glass according to customers' requirements.
7.Can you project on smart glass?
Yes, smart glass can be used as a rear projection screen High Technology Smart Window Film
