pvc insulated 1.5 mm twin and earth cable as per BS6004

pvc insulated 1.5 mm twin and earth cable as per BS6004

$0.50

≥5000 Meter

Min. Order:: 5000 Meter

Min. Order:: 5000 Meter

Transportation:: Ocean, Land

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	1 million/week
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Transportation:	Ocean,Land
Port:	Shenzhen

Product Description

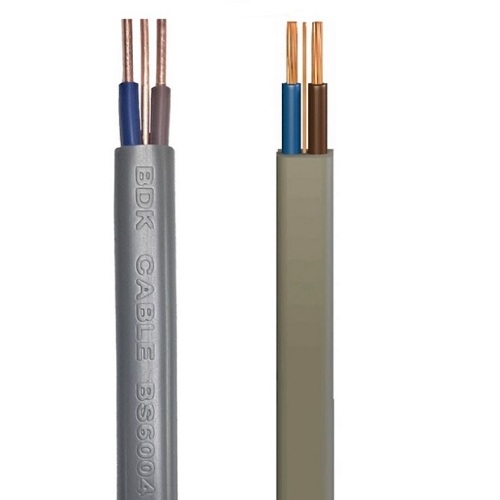

pvc insulated 1.5 mm twin and earth cable as per BS6004 (also known as T&E) is a flat PVC insulated and PVC sheathed general wiring cable, they are used for fixed wiring of domestic wiring and lighting circuits, power outlets.

BDK twin and earth cable are tested as per BS 6004, the third party test reports issued by GQI (Previously Known as CEST, a CNAS accredited testing body).

The cables contain three conductors. the sizes range from 1mm2 up to 16mm2. The sheath colour can be Grey, White or as per request. The common type PVC outer sheathing Twin & Earth cable with (6242Y, 6423Y ) and LSZH sheathing Twin & Earth cable ( 6242B, 6243B,) are available

There are different packages for option: coil, reel, blister packaging.

Specification

item	value
Model Number	Twin and Earth 624Y 624B
Standard	BS 6004 BS 7211 300/500V
Certification	Third Party Test Reports
Conductor Material	Plain annealed copper solid (1.0 - 2.5mm2) or stranded(4.0- 16.0mm2) as per BS EN 60228
Insulation Material	PVC, LSOH
Earth	non-insulated bare earth wire, central protective circuit (CPC)
Sheath	PVC, LSOH
Sheath Colour	Grey, White or as per request

Third Party Test Reports

Company Introduction

Shenzhen Bendakang Cables Holding Co., Ltd, a leading house wiring cable manufacture , the main products include: copper wiring, LV Power Cable, Armored Cable, 4mm Solar Cable and other electric items.

The construction area cover 300,000 square meters, with around 350 workers, the annual turnover reach USD 0.45 Billion. We are the qualified supplier of State Power Grid, China Southern Power Grid and Vanke Group, Country Garden,ect and other large, medium partners around the world.
