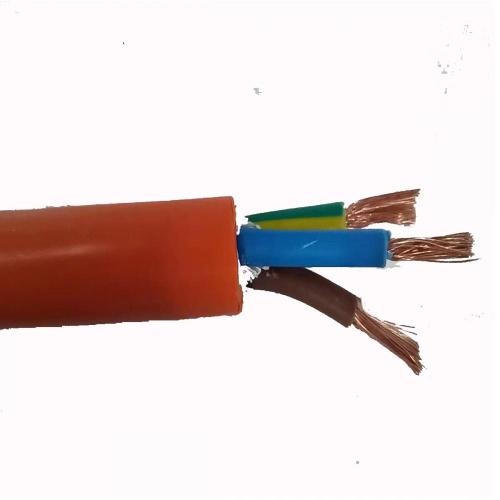

Flex Cable 2.5mm 2 Core + Earth Orange

1C 2C+E and 3C+E flexible copper conductors, 0.6/1kV V-90 insulated and PVC sheathed heavy duty flexible cord to AS/NZS 3191

Why the Australian and New Zealand standard cable used Orange Sheath,  because there are both western brightly and clearly, and Oriental reserve. Their interest is widespread, like sports, such as surfing, windsurfing, horse racing, fishing, boccia, Australian rules football, and the color of the insulated are usually red, blue and brown black white and yellow/green, and orange is the symbol of new ideas and vitality, feel warm, lively and warm, can inspire people's,

Technical Data:

Reference Standards : sizes 1.5mm² to 6mm² refer AS/NZS 5000.2

sizes 10mm² to 120mm² refer to AS/NZS 5000.1

Conductor : Fine plain annealed Copper Flexible

Insulation Material :XLPE/ V-90 PVC

Core colours : red, white, blue, gn/ye

Sheath Material : 5V-90

Armoured: Galvanized Steel Wires

Sheath Colour : Orange, Black

Electrical Data:

Voltage Rating : for sizes 1.5mm² to 6mm² - 450/750V

for sizes 10mm² to 120mm² - 600/1000V

Test Voltage : 3.5kV/5min

Insulation Resistance : Min 5 Mohm/km

Mechanical data:

Min. Bending Radius : ≤ 25mm² 4 x OD (fixed installation)

≥ 35mm² 6 x OD (fixed installation)

Temperature Rating : up to +90°C

Application:

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in undergound ducts for buildings and industrial plants where not subject to mechanical damage, suitable fo glanding.

Why choose us-BDK Cable ?

We engaged in oversea market from 2008, supply oversea partners around 60 countries.based on high quality, the cables had passed SAA certified, CE certified, CB certified,CCC and RoHS, etc; third party testing. We are well experience in producing the cables as per IEC, AS/NZS, BS,VDE, SABS, etc and clients’ request. We guarantee 100％ quality, on-time delivery, and 5-star after-sales services.

We have a great variety of AS/NZS standards Orange Circular Cable , Flat TPS Cable，IEC standards Flexible cable ,XLPE / PVC insulated Copper wire , House wiring , armoured power cable , etc Building wire.
