Underground Armoured Cable As Per IEC 60502

Knowledge about power cable wire

Main process of electric wires cables

Wire electric are manufactured by three processes: drawing, twisting and coating. The more complicated the model and specification, the higher the repeatability.

1. Drawing
In metal drawing, the metal is forced through the mold (pressure wheel) under the action of external force, and the metal cross-sectional area is compressed to obtain the required cross-sectional area shape and size. The technical processing method is called metal drawing.

2. Twisting
In order to improve the softness and integrity of copper wire, more than two single wires are interwoven in the specified direction, which is called twisting.
The stranding process includes conductor stranding, cabling, weaving, steel wire armouring and winding.

3. Coating
According to different performance requirements of cable power, special equipment is used to coat different materials on the outer surface of the conductor.
Extrusion: rubber, plastic, lead, aluminum and other materials.

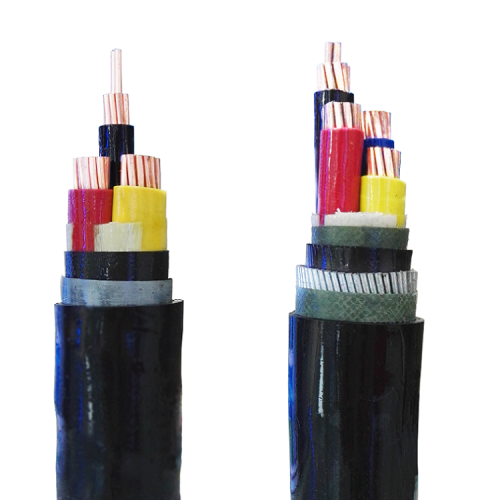

Underground Armoured Cable As Per IEC 60502

Standard:   IEC 60502 BS 6346  BS 5467

Rated Voltage: 0.6/1kV

Conductors: Class 2 stranded plain copper / aluminum as per IEC 60228

Insulation: PVC,  XLPE

Bedding: PVC

Armour: Multi-Core: STA (Steel Tape Armour)

Sheath/Jacket: PVC (Polyvinyl-Chloride)

Operating temperature: Maximum 90°C, minimum bending 0°C

Certificates: Third party test reports

Others: Fire cable and other property Low Voltage Power Cable can be available

Applications: Armored Cable for power networks, industrial plants, switch-boards, underground and in cable ducting where better mechanical protection is required.

BDK is a leading Electrical Cable,  Electric Power Cable manufacture, the annual turnover reach USD 0.3 billion.We are the qualified supplier of State Power Grid, China Southern Power Grid and Vanke Group, Country Garden,ect and other large, medium partners around the world.
