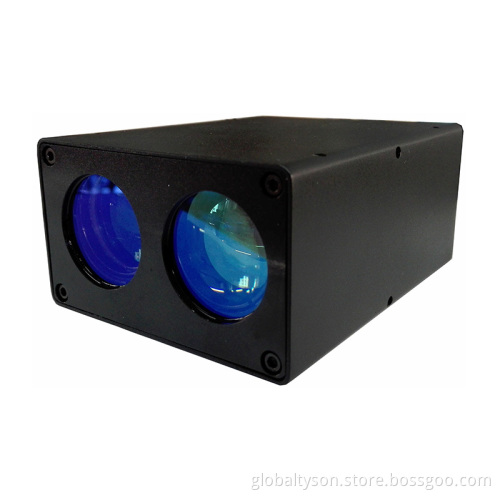

RF1150-C050-0200A4 Laser range finder sensor

RF1150-C050-0200A4 Laser range finder sensor
Description
A4 is the laser range finder sensor with high-performance and high measurement frequency, integrated with excellent optics design and high accuracy timer. It can measure up to 200Hz stably, and can give out the real-time distance between range finder and the object. It is easy to integrate due to its friendly interfaces and compact size. It is ideal for Vehicle precrash.
IR Laser Illuminator, Red Laser ModuleChina Manufacturer
Features
  Traffic light control
  Positioning sensing
  Traffic flow monitoring
  Vehicle precrash
  Hill slope monitoring
  Stuff position monitoring
  Military applications

Laser Range Finder Sensor Applications
  Traffic light control
  Positioning sensing
  Traffic flow monitoring
  Vehicle precrash
  Hill slope monitoring
  Stuff position monitoring
  Military applications

Laser Range Finder Sensor Specifications
Parameters Typical values Unit Remarks
Model no. RF1150-C050-0200A4 -
Range 1-150 m Grey object
Accuracy ±(0.1-0.5) m Maximum error
Resolution 0.03 m
Measure Freq. 200 Hz
Laser wavelength 905 nm Full angle
Fan angle <5 mrad
Laser class Class IIB Eye safe
Indicator - <span color:black;"="">- Eye safe
Water and dust proof IP67
Can material ABS
Can color Black
Operating temperature -30-60 °C
Storage temperature -40-70 °C
Power supply 8-12 V
Power consumption <2 Watt
Dimensions 77×70×40 mm
Data interfaces RS232; 0-5V - One choice
Data anode See manual
Data cathode See manual
Baud 9600 bps
Power supply anode Red -
Power supply cathode Black -
Control signal TTL(if have) -
Control cable White(if have) -
Communication protocol See manual -
