X ray baggage inspection scanner security equipment

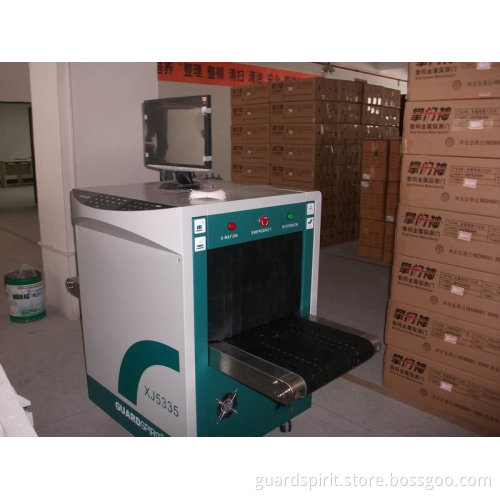

XJ5335 X ray luggage inspection scanner

Parameter:

*Tunnel Size……………..530mm(W)*350mm(H)

*Load Weight……...........50Kgs

*Conveyor Speed……….0.2-0.23m/s

*Radiation Leakage…….0.10 μG/h

*Penetration…………….34mm steel

*X-ray resolution…...40WAG

X-Ray Generator:

*X-ray Beam Direction……From bottom

*Beam Divergence……….. 80°

*Tube Voltage……………...80-160Kv

*Electronic Current…………0.2-1.25mA

*Cooling……………………Sealed oil cooling + 100% Dutycycle

Image Function:

*X-ray Converter Arrangement…. …Dual Energy L-shaped photodiode array detector

*Inorganic/Organic Stripping…… …..Organic substances display in Orange, Inorganic

substances display in blue, mixtures display in green

*Maximum Image Resolution………1024*768

*Image Storage……………………100,000pcs

*Image Display Color……………….Black /White & Color

*Grey Level…………………………65536

*Zone & Zoom…………………... ..1-9 image zones, 2,4,8 times zooming

*Other Function……………………Alarm, Review, Density Enhancement, Negative/positive image,

                               Light/Dark Enhancement, automatic count, One Key Power Off, Working status display, Date & time display, Rush Stop Protection,

                               Dangerous Alarm, System Failure Alarm etc…

Working Environment:

*Work Temperature & Humidity…. …0°C~+45°C/ 20%~95%(Non Cooling),

-10°C~+45°C/ 5%~95%(Optional)

*Storage Temperature & Humidity…. -40°C~70°C/ 5%~95%(Non Cooling)

*Power………………………………….220VAC(+10%~-15%,,50Hz±3Hz)
