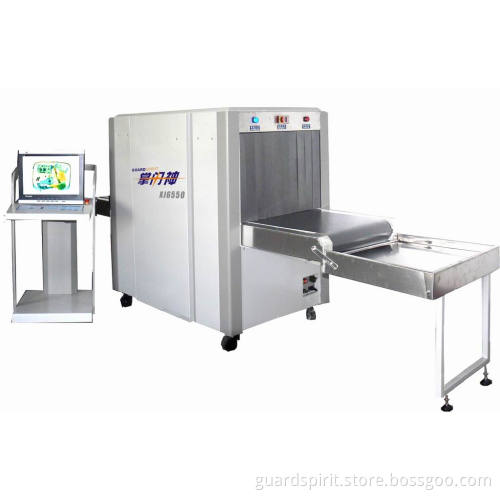

luggage parcel x-ray scanner security system XJ6550

SPECIFICATION

      Tunnel Size:650(W)*500(H)mm

      Conveyor Speed:0.20m/s

      Conveyor Max. Load:100kg

      Penetration:32mm steel

      Resolution:Diameter 0.09mm metal wire

      Radiation Leakage:Less than 1.0uGY/h (at a distance of 5cm from external housing)

      Dose Per Inspection:≤1.2μGy,ISO1600 film security certification. Complying with published international standards

      X-ray Sensor:Dual Energy L-shaped photodiode array detector

      X-ray Anode Voltage:140Kv

      X-ray current:0.7 MA

      Image Grey Level:65536(16 Bits)

      Image Presentation:B/W, pseudo color,

      Image Disposal Function:image recall, penetration and edge enhancement, negative image, inorganic and organic stripping

      Image Storage:10000pictures real time storage

      Image Max. Resolution:1024*768pixel

     Select Region and Enlarge:Magnification Times 2,4,8

      Operating Voltage:220VAC±10%V

     Operating Power:0.70KW

      Operating Temperature:0°C~45°C

     Storage Temperature:-40°C~+70°C

     Relative Humidity:10%~95% (Non-condensing)
