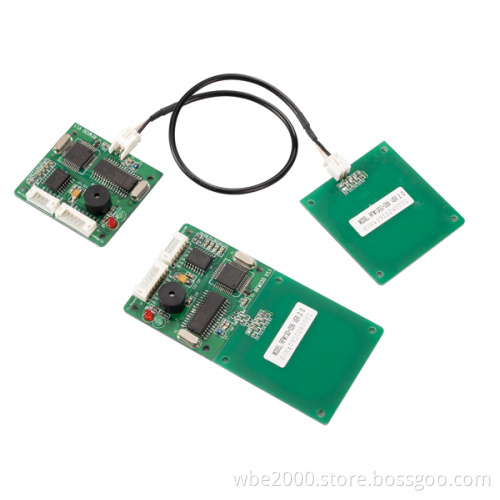

RF card reader writer module
- Min. Order:
- 10
- Min. Order:
- 10
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|
Product Description
Product Description
| Applications: | ||
| ● Mail & package management | ||
| ● Parking meter | ||
| ● Hand held terminal | ||
| ● Access control | ||
| ● Time attendance | ||
| Features: | |
| ● High performance embedded type | |
| ● Unique card searching function | |
| ● Stable & Reliable | |
| ● Compact, small, easy to use | |
| ● Low power consumption | |
| Specifications: | |
| Function | |
| Card type | ISO 14443A/B, ISO 15693 |
| Read distance | 0mm ~ 80mm |
| Interface | RS-232, RS-485, TTL, Wiegand |
| Baud Rate | 9600(default)~115200bps |
| Frequency | 13.56MHz |
| ERPROM | 512 bytes |
| Power | |
| Voltage | +5DVC（±10%） |
| Current | <150mA |
| Environment | |
| Temperature | Operation: 0°C~60°C, Storage: -20°C~60°C |
| Humidity | Operation: 20%~90%RH, Storage: 5%~95%RH |
| Physical characteristics | |
| Dimension | 100mm(L) x 50mm(W) x 10mm(H) |
