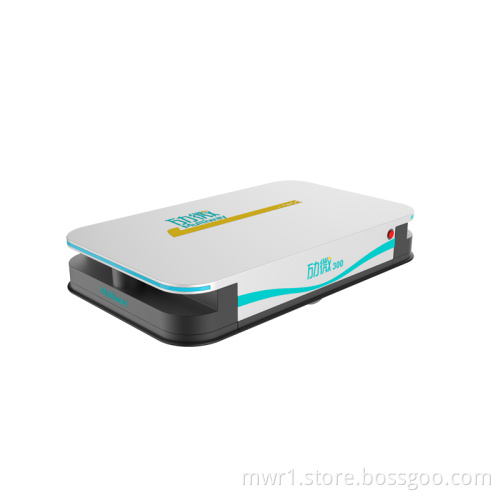

LiDAR SLAM Double Differential Wheels Automated Mobile Robot

AMR MW-C01/03/06/10, Open interface, can be matched with different tooling, suitable for heavy load transportation, and meet the needs of different scenarios.

The Specification Of MW-C01/03/06/10 LiDAR SLAM Double Differential Wheels AMR
●Standard     ○Option
Standard Models MW-C03 LiDAR SLAM Double Differential Wheels AMR
Navigation LiDAR SLAM navigation ●
Hybrid navigation(LiDAR/Laser reflector+QR code/Magnetic nail/ceiling) ○
Communication Wireless Wi-Fi ●
Optical communication ○
5G ○
Specifications Payload（kg） 300
Dimensions LxWxH（mm） 1020x620x200
Turning Radius（mm） 560
Ditch crossing capability（mm） ≤30
Obstacle crossing capability（mm） ≤10
Climbing capability（mm） ≤3°（5%）
Weight（kg） 100
Platform Lifting module D ○
Transfer module S ○
Traction module Q ○
Manipulator X ○
Motion capability Motion Reach, back, turning, spinning
Speed(Unloaded/Max loaded)（m/s） 1.5
Accuracy（Bearing wheel center）（mm） ±10
Endangle accuracy（°） ±1
Stopping Accuracy（mm） ±10
Safety&protection Manual/Auto ●
Offset protection, Abnormal positioning protection ●
Components malfuction, communication fault protection ●
Anti-collision LiDAR 2 pcs(1 front, 1 back)/ integrated with navigation LiDAR
Obstacle by passing ○
Bumper strip ○
Emergency button（At least 2pcs） ●
Sound（Speaker）alarm、Light alarm（3-color light 2pcs) ●
Industrial Screen ○
Battery capability Recharging mode Manual/Auto
Manual recharging(Plug direct) ●
Battery replacing（Standard） Customized
Automatic charging bar Customized
Battery type(Standard) LiFePO4
Voltage（V） 48
Standard capability（Ah） 30
Operation time（h） 8
Lifetime 3000 times, 70% left
Recharging station（Standard） 48V15A
Detection Cargo detection ●
Weighing module ○
Posture recognition (LiDAR cloud point) ○
Scanning bar code/ RFID recognition ○

The Technical Details Of MW-C01/03/06/10 LiDAR SLAM Double Differential Wheels AMR
Environment adaption: Laser navigation, no need to set reflector, QR code or others that refit scenarios.

Intelligent running: Map building, path planning, auto recharging, self operating that meets various scenarios. Machine vision and comprehensive system enable AMR, improving flexibility.

High accuracy, high efficiency: Primary positioning ±5mm, secondary positioning±2mm.

Max speed 1.5m/s, max payload 300kg, 7×24h full time running.

Intelligent, safe, easy to operate: Comprehensive self detection capability.

Safe sensors + dual control system protection, 360°anti-collision, Light&Sound alarm protects.

Sustainable iteration, remote upgrading, friendly HMI.

When Should I Choose Double Differential Wheels AMR
Double differential wheels AMR is perfect for map construction, path planning, automatic charging, automatic operation. Besides, it can realize traffic control, coordination and docking, coordination and linkage, cluster scheduling and other complex scheduling functions. Our double differential steering robot  can help enterprises to achieve intelligent factory warehouse logistics, greatly reducing enterprise management costs.

How Many Wheel Can Multiway Offer?
Multiway can offer 2 wheel, 4 wheel differential drive can choose the most suitable navigation mode according to the environment, and still maintain the stability of navigation and positioning, the flexibility of path, and the precision of terminal docking in the highly complex dynamic environment.

LiDAR SLAM Double Differential Wheels AMR Heavy Load transportation Material Handling
Relying on the leading heavy-duty high-precision mobile positioning technology and intelligent industrial robot technology, our diff drive robot for heavy load transportation material handling, through factory no-load, full load and other related performance test, have met the customer's use of various working conditions, various functional requirements, successfully passing the relevant customer verification and achieving the desired effect.
