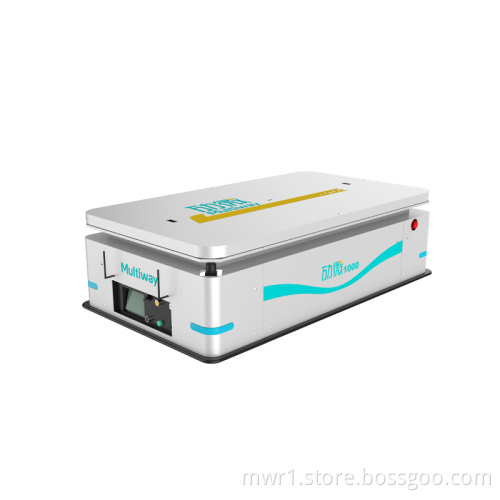

LiDAR SLAM Omnidirectional Steering Wheels Autonomous Mobile Robots

LiDAR SLAM Omnidirectional Steering Wheels Autonomous Mobile Robots

AMR MW-D10/20/30, Open interface, can be matched with different tooling, such as jacking device, roller device, manipulator, etc., to meet the needs of different scenarios.

The Specification Of MW-D10/20/30 LiDAR SLAM Omnidirectional Steering Wheels AMR
●Standard     ○Option
Standard Models MW-D20 LiDAR SLAM Omnidirectional Steering Wheels AMR
Navigation LiDAR SLAM navigation ●
Hybrid navigation(LiDAR/Laser reflector+QR code/Magnetic nail) ○
Communication Wireless Wi-Fi ●
Optical communication ○
5G ○
Specifications Payload（kg） 2000
Dimensions LxWxH（mm） 1700x950x480
Turning Radius（mm）
Ditch crossing capability（mm） ≤30
Obstacle crossing capability（mm） ≤10
Climbing capability（mm） ≤3°（5%）
Weight（kg） 700
Platform Lifting module D ○
Transfer module S ○
Traction module Q ○
Manipulator X ○
Motion capability Motion Reach, back, turning, sidesway, spinning, drifting
Speed(Unloaded/Max loaded)（m/s） 1
Accuracy（Bearing wheel center）（mm） ±10
Endangle accuracy（°） ±1
Stopping Accuracy（mm） ±10
Safety&protection Manual/Auto ●
Offset protection, Abnormal positioning protection ●
Components malfuction, communication fault protection ●
Anti-collision LiDAR 2 pcs(1 front, 2 back )/ Integrated with navigation LiDAR
Obstacle by passing ○
Bumper strip ○
Emergency button（At least 2pcs） ●
Sound（Speaker）alarm、Light alarm（3-color light 2pcs) ●
Industrial Screen ●
Battery capability Recharging mode Manual/Auto
Manual recharging(Plug direct) ●
Battery replacing（Standard） Customized
Automatic charging bar Customized
Battery type(Standard) LiFePO4
Voltage（V） 48
Standard capability（Ah） 80
Operation time（h） 4
Lifetime 3000 times, 70% left
Recharging station（Standard） 48V50A
Detection Cargo detection ●
Weighing module ○
Posture recognition (LiDAR cloud point) ○
Scanning bar code/ RFID recognition ○

The Advantages Of MW-D20 LiDAR SLAM Omnidirectional Steering Wheels AMR
Environment adaption: Laser navigation, no need to set reflector, QR code or others that refit scenarios.

Intelligent running: Map building, path planning, auto recharging, self operating that meets various scenarios. Machine vision and comprehensive system enable AMR, improving flexibility.

High accuracy, high efficiency: Primary positioning ±5mm, secondary positioning±2mm.

Max speed 1m/s, max payload 2000kg, 7×24h full time running.

Intelligent, safe, easy to operate: Comprehensive self detection capability.

Safe sensors + dual control system protection, 360°anti-collision, Light&Sound alarm protects.

Sustainable iteration, remote upgrading, friendly HMI.

When Should I Choose Omnidirectional Steering Wheels AMR
Omnidirectional motion model of this AMR allows unlimited movement. Equipped with laser radar+safety contact 360°protection, the outdoor autonomous uvc mobile robots further improve the safety of operation, making intelligent logistics more reliable. With seamless access to scheduling and warehousing systems, the robot can achieve in-depth management and optimization of business.

How Many Wheel Can Multiway Offer?
Multiway, as a reputable company in intelligent logistics solutions, can provided high quality Omnidirectional Steering Wheels AMR and Double Differential Wheels AMR, with affordable price and considerate service. With the maturity of AMR technology and acceleration of manufacturing industry, industrial mobile robots  will extend to a broader market in the future.

LiDAR SLAM Omnidirectional AMR Applcation with Different Applications
Omnidirectional ros autonomous aiv robot is mainly applied in manufacturing fields such as 3C electronics, semiconductor, panel, new energy, photovoltaic, power plant and pharmaceutical industry, among which 3C electronics industry has the largest application scale, accounting for 40%. AMR robots also have penetration in the traditional car market, but not as much.

Multiway Robotics is a agv suppliers, we provide bots warehouse, agv warehouse, omnidirectional mobile robot, outdoor autonomous mobile robots, omnidirectional wheels robot, omnidirectional robot and etc. Want to know more? Please contact us.
