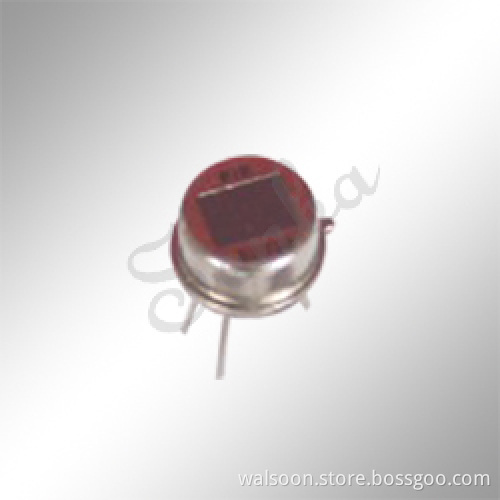

Pyroelectric Infrared Radial Sensor--D203B

Recommended Model D203B
Encapsulation Type TO-5
IR Receiving Electrode 2x 1mm, 2 elements
Window Size 5x3.8mm
Spectral Response 5- 14µm
Transmittance ≥75%
Signal Output [Vp-p] ≥3500mV
Sensitivity ≥3300V/W
Detectivity (D*) ≥1.4 x108
cmHz
1/2
/W
Noise[Vp-p] <70mV
Output Balance <10%
Offset Voltage 0.3-1 .2V
Supply Voltage 3-15V
Operating Temp. -30-70°C
Storage Temp. -40-80°C
