Li Ion 11.1V 2600mAh Rechargeable Lithium Battery
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, Others
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | CHINA |
|---|---|
| Payment Type: | L/C,Paypal,Western Union |
| Transportation: | Ocean,Land,Air,Express,Others |

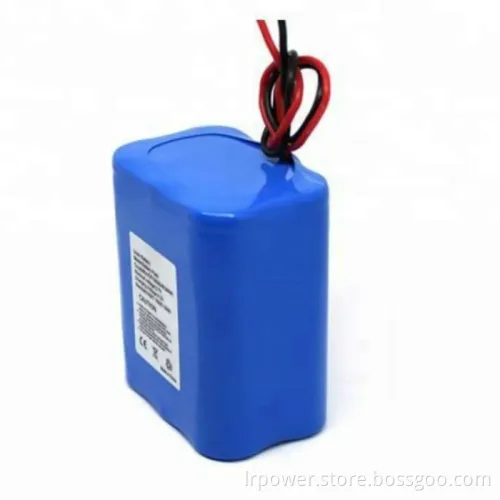

Li Ion 11.1V 2600mAh Rechargeable Lithium Battery
When using the 11.1V 2600mAh Li Ion Battery, it should be noted that the 11.1V 2600mAh Li ion Battery will enter the hibernation state after being placed for a period of time. In this case, the capacity is lower than the normal value and the service time is shortened. However, the 11.1V 2600mAh Lithium Battery is easy to activate and can be restored to normal capacity after three to five normal charge and discharge cycles.
Due to the characteristics of the 11.1V 2600mAh Lithium Battery itself, it has almost no memory effect. Therefore, the Li ION 11.1V 2600mAh Battery does not require special methods and equipment during activation. The "natural activation" method of charging the battery from the beginning is best.
Due to the advantages of high energy, high Battery voltage, wide operating temperature range and long storage life, Li ION 11.1V 2600mAh Battery has been widely used in military and civilian small electrical appliances.
|
NO |
Items |
Criteria |
Remarks |
|
2.1 |
Weight(g) |
150g |
|
|
2.2 |
Typical Capacity |
2600mAh |
0.2C charge and0.2C discharge for cut-off voltage
|
|
Minimum Capacity |
2550mAh |
||
|
2.3 |
Nominal Voltage |
11.1V |
|
|
2.4 |
Internal Impedance
|
Cell: ≤60m |
AC 1KHz after standard charge |
|
Battery: ≤280m |
|||
|
2.5 |
Charge voltage(V) |
12.6V |
|
|
2.6 |
Standard charge current |
520mA |
|
|
2.7 |
Max. charge current |
1300mA |
|
|
2.8 |
Standard dis-charge current |
520mA |
|
|
2.9 |
Max. discharge current |
2600mA |
|
|
2.10 |
Discharge cut-off voltage |
8.25V |
|
|
2.11 |
Operating Temperature |
0~+45ºC |
Charging |
|
-20~+60ºC |
Discharging |
||
|
2.12 |
Storage Temperature
|
within 1 month:-5ºC~+45ºC |
Relative humidity
65±20%RH |
|
within 3 month:-5ºC~+35ºC |
|||
|
within6 month:0 ºC~+35ºC |
Battery configuration
|
NO |
Item |
Criteria |
Remarks |
|
3.1 |
Semi-manufactured cell |
EA18650-2600 mAh |
3PCS |
|
3.2 |
PCM |
PCB-053-AA3S |
1PCS |
|
NO |
Item |
Criteria |
|
1 |
Over-charge Protection Voltage |
4.225-4.275V |
|
2 |
Over-discharge protection Voltage |
2.75-2.85V |
|
3 |
Over current detection current |
3.0A~5.0A |
|
4 |
Initial Impedance |
≤60mΩ |
|
5 |
Operation Station Current |
30μA Max |
