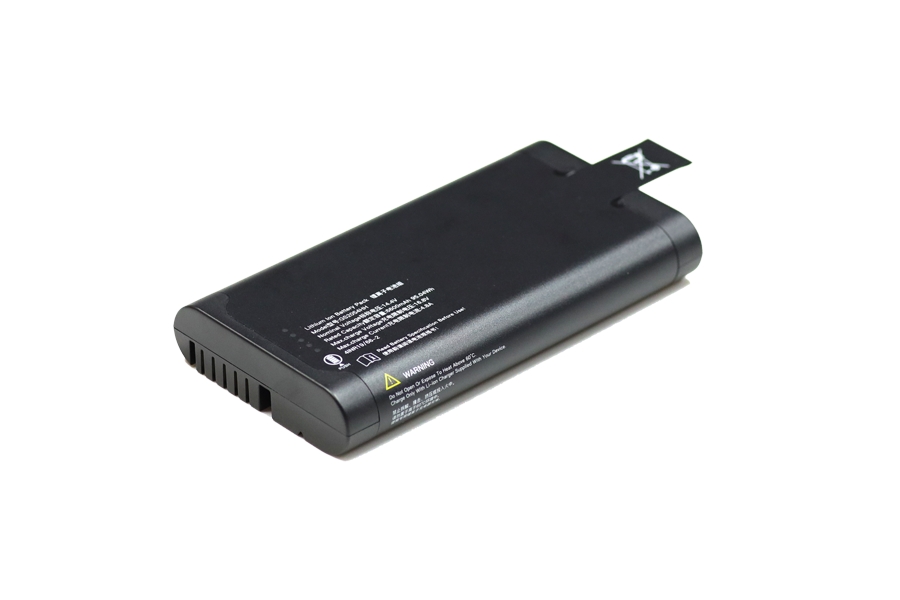

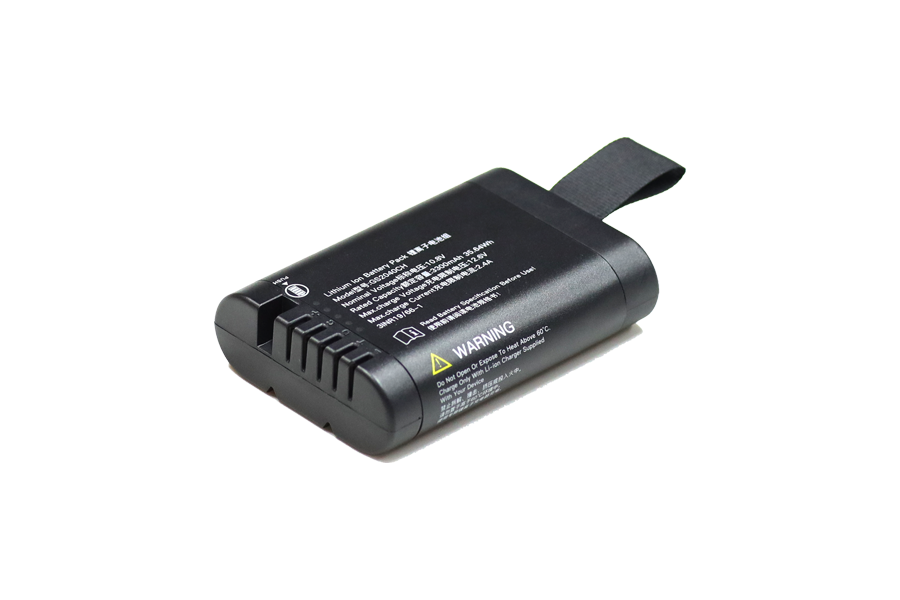

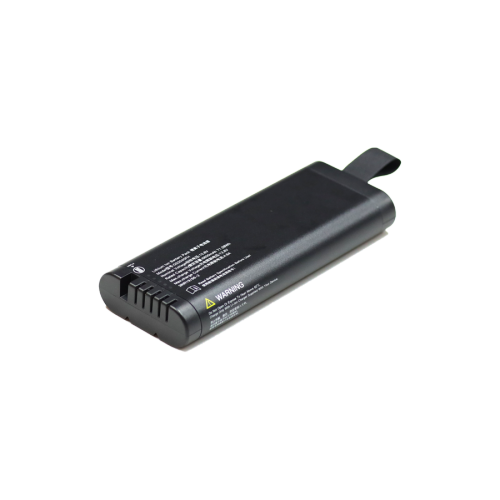

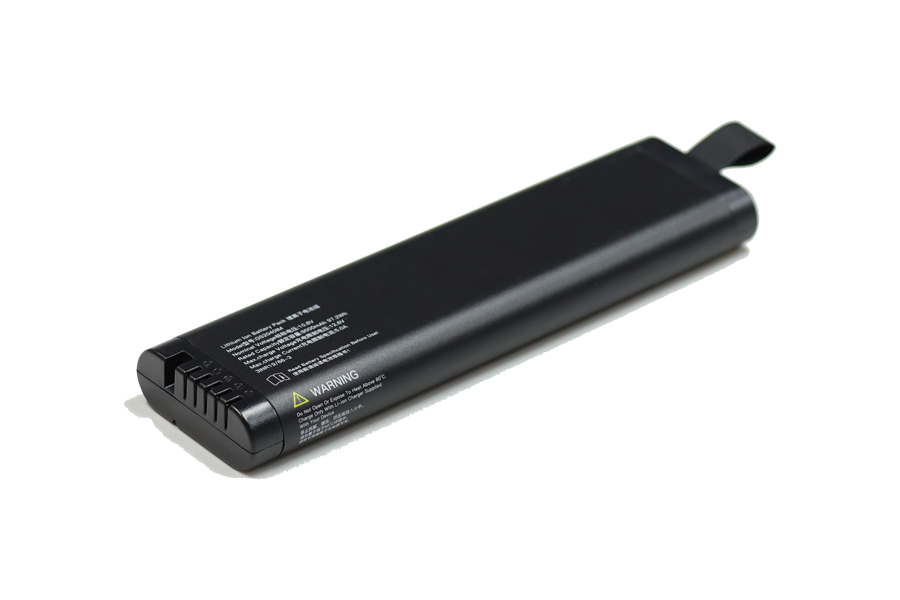

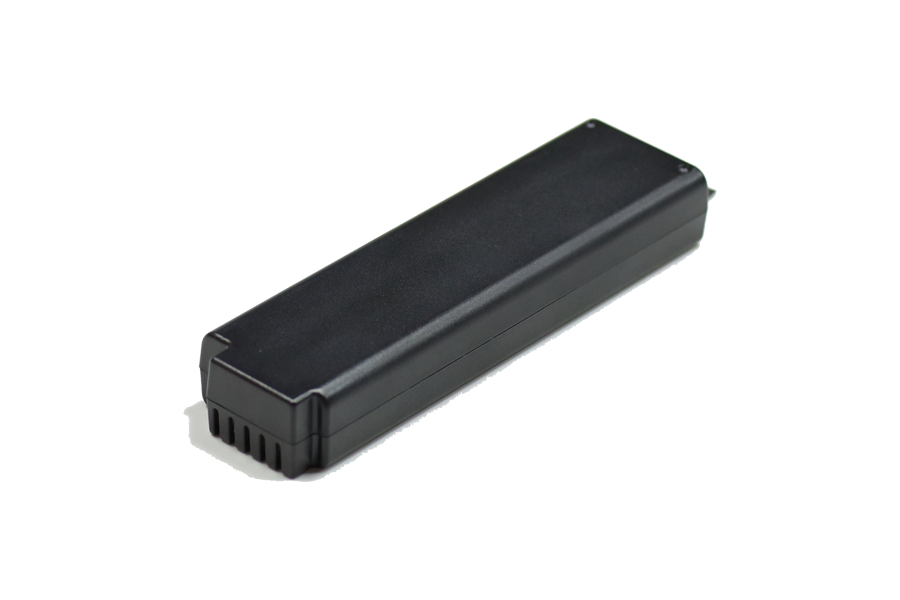

Standard smart battery pack 7.2V/10350mAh/71.28Wh
  • Standard smart battery pack 7.2V/10350mAh/71.28Wh
  • Standard smart battery pack 7.2V/10350mAh/71.28Wh
  • Standard smart battery pack 7.2V/10350mAh/71.28Wh
  • Standard smart battery pack 7.2V/10350mAh/71.28Wh
  • Standard smart battery pack 7.2V/10350mAh/71.28Wh
  • Standard smart battery pack 7.2V/10350mAh/71.28Wh
  • Standard smart battery pack 7.2V/10350mAh/71.28Wh
Standard smart battery pack 7.2V/10350mAh/71.28Wh
Standard smart battery pack 7.2V/10350mAh/71.28Wh
Standard smart battery pack 7.2V/10350mAh/71.28Wh
Standard smart battery pack 7.2V/10350mAh/71.28Wh
Standard smart battery pack 7.2V/10350mAh/71.28Wh
Standard smart battery pack 7.2V/10350mAh/71.28Wh
Standard smart battery pack 7.2V/10350mAh/71.28Wh

Standard smart battery pack 7.2V/10350mAh/71.28Wh

  • $90.00
    ≥1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Transportation:
Ocean, Land, Air, Express
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C,T/T,Paypal
Incoterm: FOB
Transportation: Ocean,Land,Air,Express
Product Description
Product Description
This standard smart battery pack, with its compact size and light and convenient design, is easily integrated into your daily carry and seamlessly integrated into your devices.  Its built-in Lithium Battery 6 Volt delivers a steady stream of powerful power for a variety of applications, ensuring that your equipment runs smoothly and stays in top condition at all times.  It is also compatible with Lithium Ion 9V Battery, which greatly broadens its application scenarios to meet your diverse electronic needs.

Safety was our primary consideration when designing this battery pack.  It is equipped with a cutting-edge intelligent security system, and the built-in intelligent circuit is like a careful guardian, which constantly monitors and effectively prevents potential risks such as over-charging, over-discharge and short circuit, which not only extends the service life of the battery, but also builds a security line for you and your equipment, so that you can use it more at ease.





16690195471669026422
166902700616690262681669021837

LR2047FH
Standard smart battery pack  7.2V/10350mAh/71.28Wh
Features
Comply with regulatory requirements in many regions of the world.
1.Standard SMBus v1.1 interface.
2.Integrated LED Power status (SOC) indicator.
3.Panasonic uses Panasonic cells with the highest energy density and stability on the market.
4.The charging optimization rules of JEITA are satisfied.
5.Comprehensive safety protection functions, such as overcharge, overdischarge, overcurrent, overtemperature, short circuit, etc.
6.It has the equalization function to effectively improve the battery life.
7.Accurate electricity calculation of TI.
Application.
Suitable for portable electronic devices, suitable for industrial and medical fields, etc.
Overview
Factory capacity 20%-30%
Compliance certification CE/FCC/IEC62133/UN38.3/UL2054
Operating temperature 0°C~50°C (charge)
-20°C~60°C (discharge)

Storage temperature -20 ℃-50 ℃(max)     -20 ℃-25 ℃(Recommendation)
Electrical properties
Rated voltage 7.2 V
Rated capacity 9000mAh
Nominal capacity 10350mAh
Internal resistance <200mΩ@1kHz at 25℃
Maximum charging current 7.2A
Maximum charging voltage 8.4V
Maximum discharge current 8.0A
Cycle life 300 cycles ≥ 80 rated capacity.
(test standard: CC/CV charge: 5A /8.4V  CC discharge: 2A.
To 5V@25 ℃)


Dimensions and specifications
Long 150.0mm  ±  0.3mm
Width 58.5mm  ±  0.3mm
Thick 22.0mm  ±  0.3mm
Weight 350g±10g
