10.8V/3450mAh 10.8V/6900mAh 10.8V/9300mAh smart battery pack

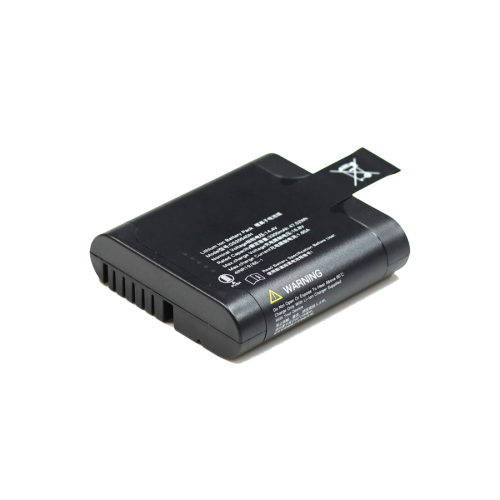

Standard intelligent lithium battery pack 7.2V/10350mAh/71.28Wh.
Features.
Compliance with regulatory requirements in many regions of the world.
"Standard SMBus v1.1 interface.
"Integrated LED Power status (SOC) indicator.
Panasonic uses Panasonic cells with the highest energy density and stability on the market.
The charging optimization rules of JEITA are satisfied.
Comprehensive safety protection functions, such as overcharge, overdischarge, overcurrent, overtemperature, short circuit, etc.
It has the equalization function to effectively improve the battery life.
Accurate electricity calculation of TI.
Application.
Suitable for portable electronic devices, suitable for industrial and medical fields, etc.
Overview.
Factory capacity 20% to 30%.
Certified CE/FCC/IEC62133/UN38.3 for compliance.
Operating temperature 0 °C ~ 50 °C (charging).
-20 °C ~ 60 °C (discharge).
Storage temperature-20 °C ~ 50 °C (maximum).
-20 °C ~ 25 °C (recommended).

Electrical properties.
Rated voltage 7.2V.
Rated capacity 9900mAh.
Nominal capacity 10350mAh.
Internal resistance < 200m Ω @ 1kHz at 25 ℃.
Maximum charging current 7.2A.
Maximum charging voltage 8.4V.
Maximum discharge current 8.0A.
Cycle life.
300 cycles ≥ 80% rated capacity.
(test standard: CC/CV charging: 5A hand 8.4 V per CC discharge: 2A to 5V@25 ℃).
Dimensions and specifications.
Long 150.0mm ±0.3mm.

Wide 58.5mm ±0.3mm.
Thick 22.0mm ±0.3mm.
Weight 350g ±10
