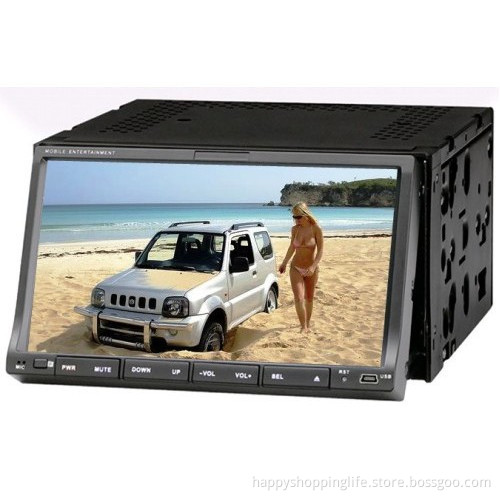

2 Din Car DVD Player with Touch Screen Bluetooth USB SD iPod

General function: DVD, Touch Screen, Bluetooth, Radio, RDS, TV, USB, SD and iPod Ready

Specification

* 7 Inch TFT LCD

* Resolution: 480 x 234

* Angle: 0-90 (Motorized sliding display panel)

* Video Systems: PAL, NTSC, AUTO

* Discs support: DVD, SUPER VCD, CD, CD-R/RW, DVD-R/RW

* AM Frequency Range: 522~1710KHz (Worldwide)

* FM Tuning Range: 87.5~108.0MHz (Worldwide)

* RDS System: YES

* Operation: Touch Screen or Remote Control

* Media Formats Supported:

- Video: MPEG 4, MP4, DIVX, AVI

- Audio: MP3, PICTURE-CD WMA

- Picture: JPEG

* External Memory:

- USB Driver: YES

- SD Card: YES

* Audio Information:

- Max Audio Output: 50W x 4

- Signal-To-Noise Ratio (SNR): 85db

- User adjustable EQ: Flat, Rock, POP, Jazz and Class

- User adjustable Sound: Bass, Treble, Balance and Fade

* TV Tuner Information:

-TV Type: Analog

-Video Systems: PAL-I, PAL-DK, PAL-BG, SECAM-L, SECAM-BG, SECAM-DK, NTSC-M

* Bluetooth Information:

- Pair with mobile phone - then use touchscreen interface

- Dial, Answer, Stop Call

- Call History (Dialed, Received, Missed)

- Volume Control

- Touchscreen Keypad

* Media Inputs:

- DVD/CD disc slot (behind touchscreen)

- SD/MMC card slot (behind touchscreen)

- Mini USB input (front)

- TV Antenna (rear)

* Front Panel Controls:

- Microphone

- Controller receiving window

- Power switch/ Mode switch

- Mute

- TFT Screen Slide Down

- TFT Screen Slide Up

- Decrease volume

- Increase volume

- Loud on/ off switch

- Enter/ Eject

- Reset

- USB port

* AV Cables / Wires:

- Radio antenna port IN

- IPOD connector

- RCA TV antenna

- Aux In L

- Aux In R

- Aux-Video IN

- Back Video Camera IN

- Subwoofer

- Video OUT x2

- Steering Wheel Control 1

- Steering Wheel Control 2

- RCA Audio OUT x2 (front L and R)

- RCA Audio OUT x2 (rear L and R)

- Left Front Speaker x2

- Right Front Speaker x2

- Left Rear Speaker x2

- Right Rear Speaker x2

* Dimensions W: 178 mm H: 100 mm D: 165 mm (with front panel: 192 mm)

* OSD Languages: English, Chinese

* Certifications: CE, FCC

Package Contents

* Car Media Player main device

* Remote Control with battery included

* USB Extension Cable

* iPod Cable

* Mounting Hardware

* Pen Stylus

* Users Manual - English
