Product Description

Our P12 outdoor advertising led display is well known with great features such as: Stable performance, Energy saving, high refresh rate, high protection grade.
1. The cabinets, featuring great moisture and corrosion proofing, enable themselves to work in all weather conditions.
2. Energy saving design, saving up to 30% of power consumption, so as to lower down your running cost and fulfill your demands of protecting the environment.
3. Superb refresh rate provides you coherent video effects to meet your needs for high display quality.

Detail Specification sheets:

Model No:GL-OD-P12
Item	Parameter (DIP346)
Pitch Pixel	12 MM
LED Configuration	2R,1G,1B
LED standard	3mm Lamp

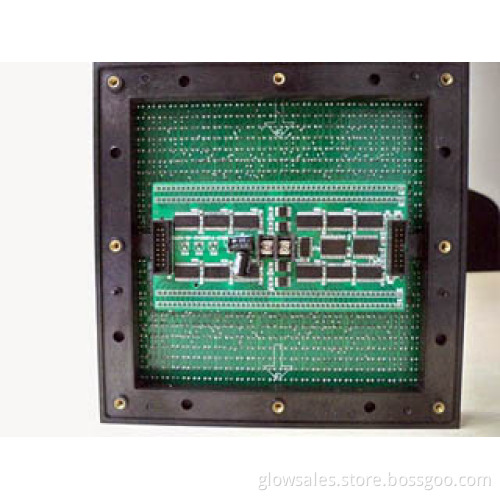

Module Dimension	192*96 MM
Module Resolution	16*8 Pixel dots
Cabinet Dimension	768*576 MM
Cabinet Resolution	64*48 Pixel dots
Cabinet Weight	50 KGS/SQ.M
Luminance	7000 NIT
View Angle	110(H),90(V) Degree
Power Consumption(Average)	550 W/ SQ.M
Best View Distance	12~100 Meters
MTTF	5,000 Hours
Protection Level	IP 65
Pixel Density	6944 Dots/ SQ.M
Drive Mode	1/4 scan, constant current

LED Display Control System:

Control Means: Synchronization

Control System: PCTV Board +DVI Board +Control Board+ Network cable Transit

Software: LED Studio (LINSN)

Input Signal: RF, S-Video, RGB,RGBTV,YUT,YC, COMPOSTION

PC System: Win2000, Win XP, etc
