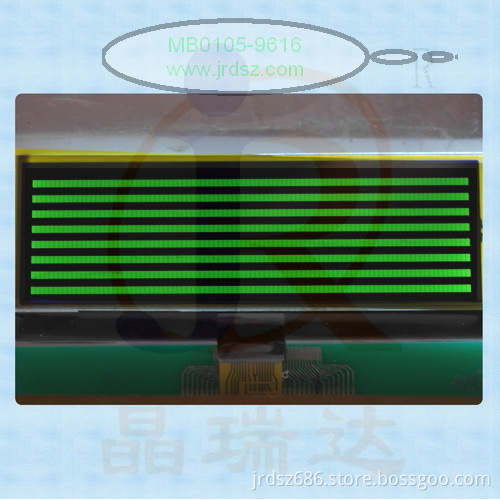

96*16 LCD module for displays of car bluetooth on rearview mirror
- Payment Type:
- T/T
- Incoterm:
- Shenzhen Delivery
- Min. Order:
- 2000 Piece/Pieces
- Min. Order:
- 2000 Piece/Pieces
- Delivery Time:
- 30 Days
- Transportation:
- Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 20000 |
| Supply Ability: | 8000000 |
| Payment Type: | T/T |
| Incoterm: | Shenzhen Delivery |
| Certificate: | SGS |
| Transportation: | Ocean,Land |
standard I2C connector,9616 dot matrix,applied for running machine,car audio,car bluetooth,car handfree,intelligent gas indictors,heater display,thermometer,hygrometer,,prtable industry instruments,microwave LCD,foot massage LCD,home appliance LCD,electric scales LCD,remote controller LCD,intelligent charger LCD,voltmeter LCD,ammeter LCD and so on.
[Display Specification: 96 * 16 dot matrix
The number of lattice points []: 96 SEG * 32 COM
[Looks every inch]: 78 * 31
[VA inch]: 75 * 23
Distance between the point []: 0.75 * 1.26
[Point Size]: 0.71 * 1.22
[Controller]: 1603
[Display]: significant negative / positive display (optional)
[Depending on the angle???]: 6:00 / 12:00 / (optional)
[] Operating temperature: -10 ℃ ~ +60 ℃
Storage Temperature: -20 ℃ ~ +70 ℃
[Category]: dot matrix LCD module >>
[Transmission method: Transmission / transflective / reflective (optional)
Glass Type []: FSTN
High reliability []: 50,000 hours
[Ratio]: You can adjust
[Process] form: COG super anti-jamming capability
[Backlight]: LED white or yellow green blue (optional)
[Data Bus]: I2C
[Voltage]: 3V
[Current]: about 2mA (excluding backlight power consumption)
[Display]: blue display for the blue and white, yellow, and green screen with black and yellow to yellow, white to white with blue letters display effect
