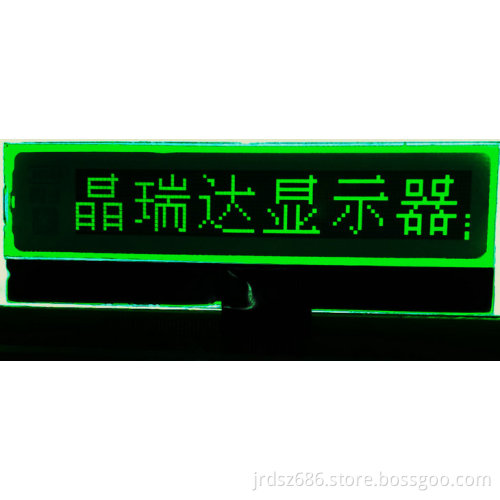

96 * 16 LCD Module for Bluetooth

This is a dot-matrix display I2C interface LCM, Advertising display, Bluetooth display module, LCD display electronic labeling,Bluetooth hands-free, Bluetooth stereo, steering wheel Bluetooth handsfree display, can display characters, numbers, and graphics with Bluetooth and battery icon. Can display 12 characters * 2 lines.
[Model] : MB0095
[ Display Specification: 96 * 16 dot matrix
The number of lattice points : 96 SEG * 16 COM
[ Looks every inch ]: 60.5 * 20 * 2.0
[V A]: 57.5 * 11.5
Distance between the point [ ]: 0.5 * 0.5
[ Point Size ]: 0.47 * 0.47
[ Controller ] : UC1603
[ Display ]: significant negative / positive display ( optional )
[ Visual angle ]: 6:00 / 12:00 / ( optional )
Operating temperature : -10 ~ +60
Storage Temperature : -20 ~ +70
[Category] : dot matrix LCD module >>
[ Transmission method: Transmission / transflective / reflective ( optional )
Glass Type : FSTN
High reliability : 50,000 hours
[ Ratio ] : You can adjust
[ Process] form : COG super anti-jamming capability
[ Backlight ] : LED white or yellow green blue ( optional )
[ Data Bus ] : I2C Interface
[ Voltage ] : 3.0V ~ 3.3V
[ Current ]: about 2mA ( excluding backlight power consumption )
[ Display ]: blue display for the blue and white , yellow, and green screen with black and yellow to yellow , white to white with blue letters display effect
