Dot-matrix LCD modules
- Payment Type:
- T/T
- Incoterm:
- FOB
- Min. Order:
- 2000 Piece/Pieces
- Min. Order:
- 2000 Piece/Pieces
- Delivery Time:
- 45 Days
- Transportation:
- Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | shenzhen |
|---|---|
| Productivity: | 20000 |
| Supply Ability: | 300000 |
| Payment Type: | T/T |
| Incoterm: | FOB |
| Certificate: | SGS |
| Transportation: | Ocean,Land |

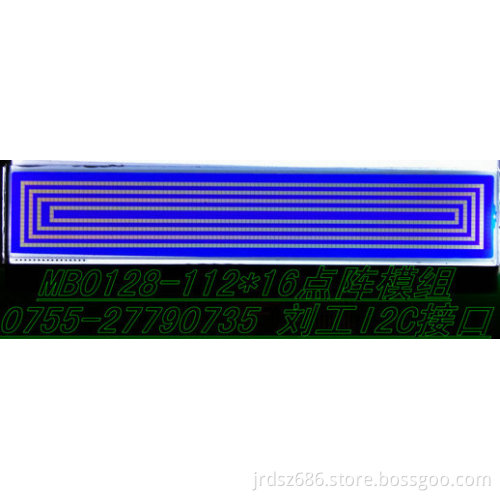

112*16 dot matrix,I2C connector,matched iron box and backlight available,applied for display of car audio and bluetooth,simple externak circuit designed for economical raw material and production cost.
[Model]: MB0128
[Display Specification: 112 * 16 dot matrix
[Number of lattice points]: 112 SEG 16 COM
[Looks every inch]: 78 * 20.5/15.5 * 2.0
[VA]: 75 * 12.5
Distance between the point []: 0.65 * 0.65
[Point Size]: 0.62 * 0.62
[Controller]: SPLC502C
[Display]: significant negative / positive display (optional)
[Visual angle]: 6:00 / 12:00 / (optional)
Operating temperature: -10 ℃ ~ +60 ℃
Storage Temperature: -20 ℃ ~ +70 ℃
[Category]: dot matrix LCD module >>
[Transmission method: Transmission / transflective / reflective (optional)
Glass Type : FSTN
High reliability : 50,000 hours
[Ratio]: You can adjust
[Process] form: COG super anti-jamming capability
[Backlight]: LED white or yellow green blue (optional)
[Data Bus]: I2C Interface
[Voltage]: 3V
[Current]: about 2mA (excluding backlight power consumption)
[Display]: blue display for the blue and white, yellow, and green screen with black and yellow to yellow, white to white with blue letters display effect
