HONGDU TESTING EQUIPMENT CO.,LTD.

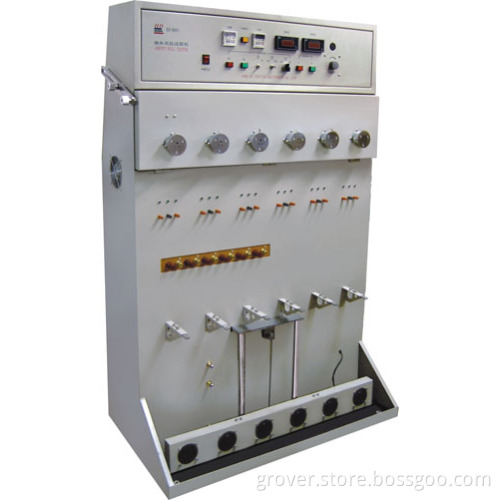

HD-8891 Abrupt Pull Tester(Standard)
Product explanation:
This apparatus is mainly used to perform the abrupt pull test of plug.This apparatus is designed and manufactured in accordance with UL817(Chapter99 Abrupt Pull Test) standard.
Features:
* Subsequent to the abrupt pull test,the grounding conductor will be apply a 40A current for 2 minutes.
* Both 2-wire core and 3-wire core can be tested by this machine.
* The blade mounting plate can be rotated 900 to both right and left.
Technical parameter:
|
Power source
|
AC 220v 50Hz
|
|
Specimen length
|
305mm
|
|
Downward angle
|
450 to the vertical
|
|
Weights
|
15LB/2.5LB
|
|
Weight fall distance
|
254mm or 178mm
|
|
Test current
|
40A at 6V~12V
|
|
Counter
|
0~999900times(LED display)
|
|
Working units
|
6 units
|
|
Test times can be setted
|
|
|
Exterior dimension
|
1140 L,600 W,1700 H
|
|
Weight
|
225KG
|
Standards:
UL817
Test Objects:
Power plug
