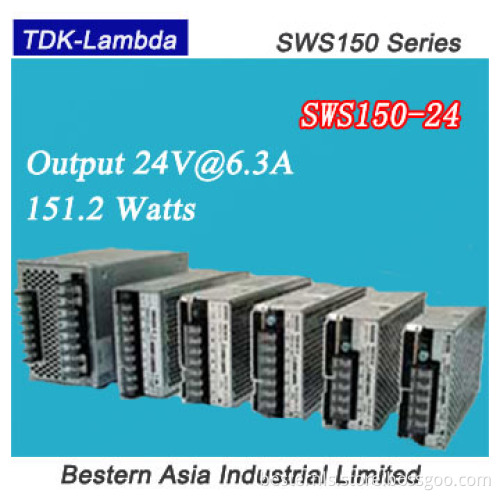

SWS150-24(TDK-Lambda) 150W 24V Power Supply
- Min. Order:
- 10
- Min. Order:
- 10
- Delivery Time:
- 70 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Japan |
|---|---|
| Supply Ability: | 30000pcs per quarter |
| Certificate: | UL, CSA, CE |
Product Description
Product Description
Specification:
1. TDK-Lambda 150W 24V AC-DC Power Supply SWS150-24
2. Wide Input Range: 85-64Vac
3. CE, UL, CSA Safty
4. 2 years warranty
TDK-Lamdba 24V 150W output AC-DC Power Supply: SWS150-24
Specifications:
Specifications:
| Model | SWS150 |
| Input Voltage Range | 85~265VAC (47-63Hz) or 120~370VDC |
| Nominal Output Power | 150W |
| Nominal Output Voltage | 3.3 , 5 , 12 , 15 ,24V |
| Output Voltage Range | ±10% |
| Operating Temperature | -10~+60°C (Refer to Output Derating Curve) |
| Safety | Approved by UL/CSA/EN60950,EN50178,CE Marking for LVD |
| EMI | Built to meet FCC-Class B,EN55011/EN55022-B |
| Immunity | Built to meet EN61000-4-2,-3,-4,-5,-6,-8,-11 |
| Weight (g) | 750 |
| Dimension (mm) | 51 x 99 x 198 |
Ordering Informations:
| Part No. | Output Voltage | Output Current | Output Power |
| SWS150-3 | 3.3V | 30A | 99W |
| SWS150-5 | 5V | 30A | 150W |
| SWS150-12 | 12V | 12.5A | 150W |
| SWS150-15 | 15V | 10A | 150W |
| SWS150-24 | 24V | 6.3A | 151.2W |
