RF Wireless LED Remote Controller

RF Wireless Touching LED  Remote Controller:
1.RGB,
2.Color Temperature & Brightnessadjustable,
3.Brightness adjustable.

which control for led strip, achieve the color&brightness adjustable function, change 64,0000 colors as per the free operation

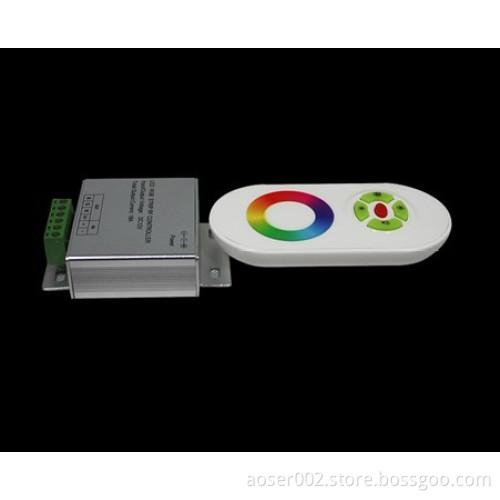

RF Wireless Touching LED Remote Controller

Technical Parameters(remote control)

1    Power supply: AAA battery * 3pcs
2    Cover material:ABS
3    Fabrication processing: multicolour printing & UV varnish

Technical Parameters(controller)

1    Working voltage: DC12V/24V
2    Output control: 1 circuits
3    Control current:6A/circuit
4    Connecting mathod: common anode
5    Dimension: L85*W64*H24
6    Receiving range:20meters

Functions of Keys

1    Key 1: medium brightness
2    Key 2: on
3    Key 3:off
4    Key 4:highest brightnessKey
5    Key 5:lowest brightness

How to use

1. Use your finger to touch the color ring ,you can change the brightness from the highest to the lowest (100%-1%,50 grades to adjust).
2. Resume function. The previous settings will be resumed while power on again

3. Matching code
Press Key 4 once within 3 seconds when power on again, the light will blink 3 times if matching is successful. Clearing  code .  pss Key 4 five times within 3 seconds when power on again,
the light will blink 6 times if clearing is successful.
