LCD display Offline UPS with AVR

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Supply Ability:	50,000pcs/month

Product Description

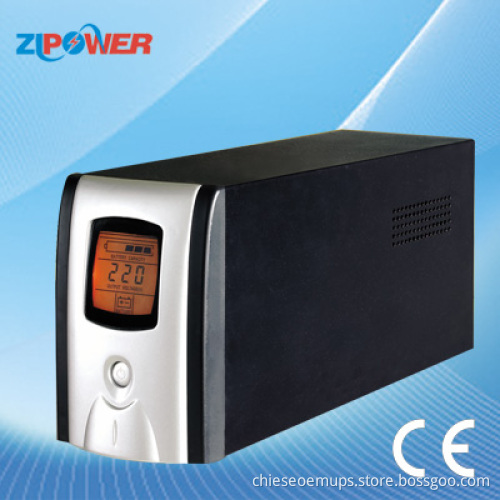

LCD display Offline UPS with AVR

1: Offline UPS with AVR
2: Offline UPS with Overload and short circuit protection
3: CPU Control for Offline UPS
4: UPS Ports for RJ11/RJ12/RJ45/RS232/USB

Offline UPS - Offline UPS with Standby Function for Home and Office use
KEY FEATURES
1: Optional function
2: Line Surge Protection: RJ11/RJ12/RJ45, Communication Interface: RS232
3: Control mode: CPU controller

Function & Characteristic:
4: AVR, Overload and short circuit protection
5: Low battery alarm, LED status display
6: UPS Auto on when AC back, Night charging(optional)

Application: Home, Office

UPS MODEL			N400	N500	N650	N800	N1000	N1200	N1500
Nominal Voltage			400VA/240W	500VA/300W	650VA/390W	800VA/480W	1000VA/600W	1200VA/720W	1500VA/900W
Input	Voltage Range		145~280VAC
	Frequency		50/60Hz
Output	Voltage Range		220VAC ± 10%
	Frequency		50Hz ± 5%
Output Waveform					Square Wave
Transfer time			< 10ms
Battery	Type		Sealed free maintenance lead acid battery
	Capacity		12V, 4AH *1PCS	12V, 7AH *1PCS	12V, 7AH *1PCS	12V, 9AH *1PCS	12V, 7AH *2PCS	12V, 9AH *2PCS	12V, 9AH *2PCS
	Recharge Time		8 hrs to 90% of capacity full load discharge
	Protection		Auto protect
	Back-up time( Full load )		3~5 min	5~7 min	7~10 min	6~8 min	5~7 min	8~10 min	10-12min
Function			Auto voltage output on AC mode, Auto shutoff if short circuit or overload
DB-9 port, communication software			Optional RS232, RJ11, RJ45, USB
Protection	AC mode		Fuse
	Short circuit	AC	Fuse
		Invert mode	Auto protect
Alarm	Alarm	Battery discharge	Alarm beeps every four seconds
		Low battery voltage	Alarm beeps every second
		Overload	Alarm beeps continuously
	Indicator light	Auto adjust	Green lighting: AC mode
		Battery Discharge	Red lighting: Battery mode
Environment	Operating temperature		0C~40C
	Operating Humidity		0-90% non-condensing
	Noise		< 35dB (1 meter distance)
UPS Dimension (L× W× H) mm			32590150	335100150			345125190
Net weight (N. W)			4.50KG	6.50KG	6.80KG	7.50KG	11.00KG	12.00KG	13.00KG
Gross weight (G. W)			4.70KG	6.70KG	7.00KG	7.70KG	11.30KG	12.30KG	13.30KG
