Battery PCM / Battery Protection Circuit Board (PCM) for 3s Cells 11.1

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Number of Layers	Other
Board Thickness	0.2
Copper Thickness	0.1
Min. Hole Size	0

Detail Description

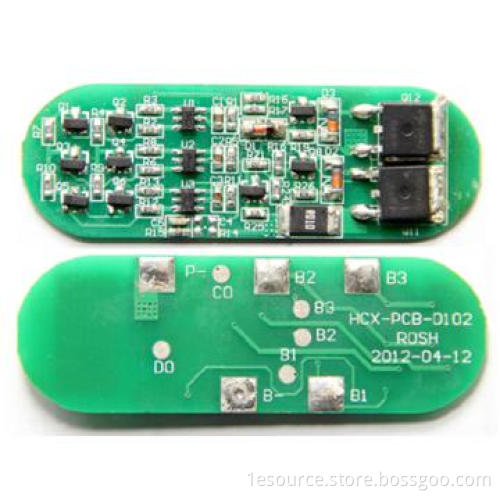

1. Protection Circuit Board for 3S Li-ion and Li-polymer battery pack (5A working current-10A cut off ).
2. Prevent 3.7V Li-ion or Li-polymer battery from over-charging, over-discharging, and from discharging current more than 10A.
3. Compatible with both Li-ion and Li-Polymer cells.
4. Voltage
Charging voltage12.6V
CurrentMaximal continuous charging current5A
Maximal continuous discharging current5A
Current consumption200A
5. Overcharge Protection
Over charge detection voltage4.28V
Over charge detection delay time1.2S
Over charge release voltage4.08V
6. Over Discharge Protection
Over discharge detection voltage2.8V
Over discharge detection delay time144mS
Over discharge release voltage2.9V
Over Current ProtectionOver current detection voltage0.1V
Over current detection current10A (Adjustable)
Detection delay time9mS
Release conditionCut load, automatically recover

Additional Information

Payment Terms	T/T
Minimum Order	100
Lead Time / Delivery Time	10 Day(s)
Sample Available	YES Ask For Sample
FOB Port	Shenzhen
Loading Info	ship by DHL UPS FedEX
Target Market(s)	Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe
