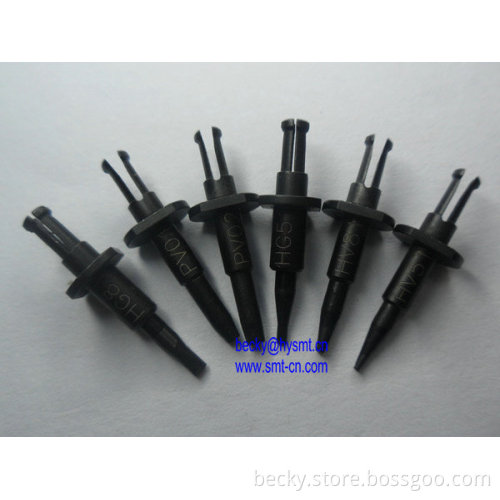

Hitachi SMT Nozzle for GXH-1 and GXH-3

Part Number

Description

630 128 4842(#101)

HA01 (for 0603) 0.7x0.4/Ø0.25

630 132 2322 (#111)

PV01 (for 1005) 1.1x0.6/Ø0.38

630 132 9857 (#112)

PV02 (for 1608) 1.7x0.9/Ø0.65

630 129 2892 (#104)

HV03 (for 2012) Ø1.3/Ø0.9

630 129 2922

HA04 (for 3216) Ø1.8/Ø1.2

630 129 2939 (#108)

HA05 Ø3.0/Ø2.0

630 129 2946

HA09 Ø6.0/Ø4.5

630 152 8267

HV31 Ø0.7X0.4/Ø0.2

630 152 8472

HV51 Ø0.6/Ø0.4

630 158 9084

HV81 Ø1.7X0.9/Ø0.7

630 158 6571

HG31 Ø0.7X0.4/Ø0.2

630 159 9632

HG51 Ø0.6/Ø0.4

630 161 3501

HG81 Ø1.7X0.9/Ø0.7

630 128 4842

HA10 Ø0.7X0.4/Ø0.2

630 129 2878

HV01 Ø0.6/Ø0.4

630 129 2885

HV02 Ø0.9/Ø0.7

630 133 5407

PA05 Ø2.6/Ø2.0

630 129 2908

HB03 Ø1.3/Ø0.9

HB04 (Melf)

Hitachi Σ-G4, Σ-G5

Part Number Description

HV32C Σ-G4/G5 HV32C

HV52C Σ-G4/G5 HV52C

HV82C Σ-G4/G5 HV82C

HG21C Σ-G4/G5 HV21C

HG32C Σ-G4/G5 HG32C

HG52C Σ-G4/G5 HG52C

HG82C Σ-G4/G5 HG82C

HV13C Σ-G4/G5 HV13C

HV14C Σ-G4/G5 HV14C

HB04C Σ-G4/G5 HB04C
