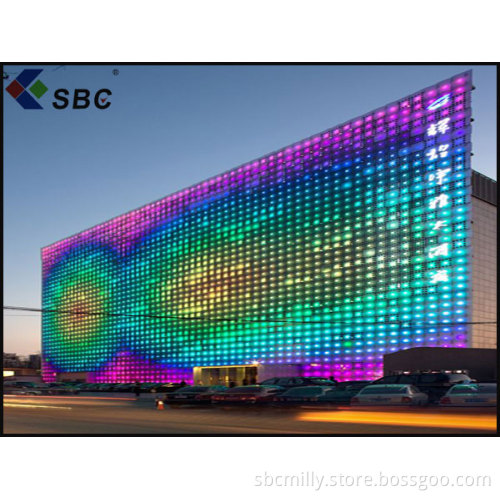

outdoor Big led display
- Delivery Time:
- 7 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong，China |
|---|---|
| Certificate: | FCC,CE,ROHS,UL |
Product Features——Stability ,of course SBC!
Ph20mm outdoor smd 3-in-1 full color LED display panel details
SMD(Surface Mounted Device) is a method for constructing electronic circuits in which the light chips are mounted directly onto the surface of printed circuit boards. Our use this technology in indoor display have a long time, and ours best new way is used it in outdoor screens. Each SMD pixel consists of red, green, and blue diodes mounted on a chipset, which is then mounted on the driver PC board. The diodes are very small and are set very close together. The difference is that the maximum viewing distance is reduced by 25% than common led display but advanced by 50% than indoor led display with the same solution.
Parameters——Stability ,of course SBC!
| Type | Outdoor Led Display |
| Best Viewing Distance(m) | 69 |
| Pixel Pitch(mm) | 20 |
| Pixel Density(Dots/sqm) | 2500 |
| Configuration | 1R1G1B |
| Module Size(mm) | 320*160 |
| Unit Box Pixel(Dots) | 64*48 |
| Cabinet Size(WxHxT) | 1280* 960*120 |
| Cabinet Weight(Kg) | 60 |
| Brightness(cd/sqm) | 8000 |
| Refresh Frame Frequency | 1000Hz |
| MTBF(H) | 10000 |
| Maximum Power Consumption(W/sqm) | 550 |
| Average Power Consumption(W/sqm) | 300 |
| Left/right Viewing Angle(Degree) | 140° |
| Grey Scale | 12bit |
| Display Color | 16777216colors |
| Brightness Adjust | 256grade automatic,100grade manual |
| IP Standard | IP65 |
| Display Module Brightness Uniformity | 5% |
| Pixels Out Of Control Rate(Dots) | 1/100000Dots |
| Life Span(H) | 100000H |
| Operating Voltage | AC220V/50Hz&AC110V/60Hz available |
| System Working Environment Temperature | —20°C~+60°C |
| System Working Environment Humidity | 10%RH~90%RH |
