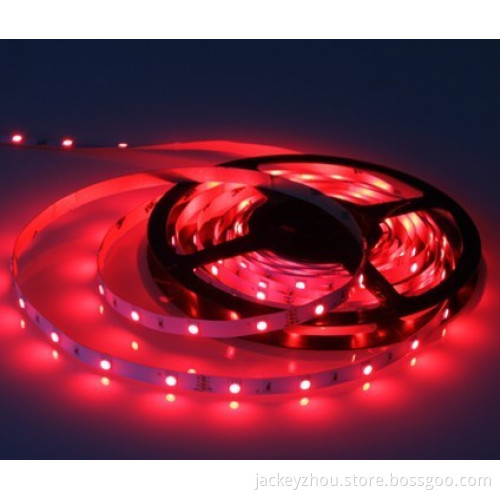

LED Non-waterproof led strip light SMD3528 300Led/600Led

Product description: SMD3528 led flexible strip, using constant voltage 12V drive, high-brightness, low current, 3 leds can be cut, max available in 5 meters, its unique LED three-chip structure, make it in the heat sinking, lifetime, light decline in 3% -5% after 1000 hours, get a good control, two-year warranty.

size:5000*8*1.5mm

light sources:SMD3528

led quantity:300led/600led each 5m

color:ww/w/red/green/blue/yellow

work voltage:DC12V

power:24w

Installation Instruction

1,In the choice of power cord, power cord should be noted that the current carried should be larger than normal working current by the lamp brought.

2．Controller and switching power supply must work in ventilated and dry environment.

3．Make sure the input wire or output wire of control bus without a short circuit before operation. In the case of work such as short circuit, the internal components may be destroyed

Attention

1. Suggest led strip connection with length no more than 10meters. 3LED as a loop, the interface can be cut to use, but can not be cut in the middle of a loop

2. Collocate suitable power supply according to the total power after strip concatenation, and also pls assure the power of led adapter must be larger than the load power, or else the power supply will be burned out.

3. LED strip drove by DC12V, pls do not use output DC5V or DC24V power supply, it will not light or burn out.

4. This product is non-waterproof led series strip, suitable for indoor application, not in the rain or put into the water.

5. The soft silica gel is on the LED surface, forbid any chemical solvent smear on the surface which have chemical reaction with silicon, otherwise the leds can not light.

6.Working temperature is -10 C°- +40 C°.

7. If the lamp body is damaged, it must use the new alternative.

8. It can not connect power when installation or removal.

Common faults and Troubleshooting

1)Please check if power supply is connected, or if the switch is in the connected position when the light is not lit.

2)If the lamps light sometimes and off sometimes, pls check whether the connection is bad or loose

Attention:If the lights still can not work well after trying the methods above, pls contact with

3)professional maintenance staff to repair, and do not dismantle yourself.
