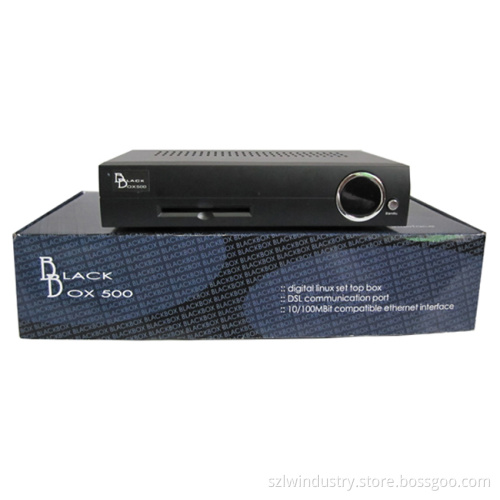

Dm500s Blackbox OEM Original Dreambox 500s DVB500s

  Product Description

Dreambox DM500S, Blackbox 500S OEM, DVB500S OEM
1. Linux Operating System
2. 1 Smart Card Reader
3. DVB Satellite Receiver DM 500S. Blackbox 500s
4. Factory Wholesale Price,

Description:
The DVB 500-Si isthe first Linux based DVB Receiver.
This receiver runs on open-source software developed by hundreds of developers around the world. This is the ultimatemachine. It has many differnet skins that can be applied to make the userexperience completely customizable.
If you're looking for a VERY powerful DM 500s, and something to have fun on, this is DM500s for you. This unit has a great EPG and supports Personal Video Recording. You can attach this unit to your Windows based network at home and record your favourite TV programs right onto your hard drive.
Features:
The DM500s is the smallest Linux satellite TV receiver
250 MHz IBM PowerPCProcessor (350 Mips)
2 LED status
Linux Operating System
Fullautomatic service scan
Supports directly bouquet-lists (indirect unlimited)
Supports multiple LNB-Switching control (supports DiSEqC)
1 x Smart card-Reader
Unlimited channel lists for TV/Radio
SPDI/F nterfacefor digital bit stream out (AC-3 / DTS)
MPEG2 Hardware decoding
Channel-change time<1 second
Fully adaptable OSD in many languages(skin-support)
100Mbit full duplex Ethernet Interface
Supports EPG(electronic program guide)
1 x Scart-interfaces (fully controlled bysoftware)
Specifications:
Video decoder:
Video Compression MPEG-2 and MPEG-1 Compatible
Video Standard PAL and NTSC
Video Format 4: 3 / 16: 9
Footage 16: 9, Automatic Assimilation for 16: 9 TV-Device(over scart)
Letterbox Precolating For 4: 3 TV-Device Audio Decoder
Audiokompression MPEG-1 & MPEG-2 Layer I and II
Audio Mode Dual (main/USB), Stereo
Frequency: 32kHz, 44.1kHz, 48kHz, 16kHz, 22.05kHz, 24kHz
VIDEO PARAMETER:
Input Level FBAS 1 Vss +/-0.3 dB on 75Ohm
Teletext Filter in Conformity with ETS 300 472 Standard
TV-Scart:
Frequency Range 950...2150MHz
Signal Level - 65 dBm...-25 dBm
Signal-to-Noise Level 12dB max
DBS-Tuner Input Connector F-Type Female
Input Impedance 75 Ohm
AFC +/- 3 MHz
Demodulation Shaped QPSK
Input Symbol Rate 2...45 Mbaud/s, SCPC/MCPC
FEC Viterbi and Reed-Solomon
Viterbirate 1/2, 2/3, 3/4, 5/6, 7/8, Automatic Assimilation
Roll-off Factor 35%
Demultiplexing According ISO 13818-1
Ethernet:
100 MBit compatible, bi-direktionalinterface
Function Update of Firmware and Preprogramming
LNB Power andpolarisation:
LNB Current 500mA max.; Short-circuit-proof
LNB Voltagevertical<14V without load, >11, 5V at 400mA
LNB Voltage horizontal<20V without load, >17, 3V at 400mA
LNB shut-off atStandby-Mode
Count of active satellite position:
DiSEqC 1.0/1.2 SATPOSITION / SAT OPTION
DiSEqC - Rotor Control
Output digital:
OutputLevel 0, 5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48kHz
S/PDIF-Output optical (AC3)
Output analog:
Output Level L/R 0, 5Vss on 600 Ohm
THD>60 dB (1 kHz)
Crosstalk<-65dB
Serielle Interface RS 232:
Typ RS232 bidirectional
Bit rate115, 2 kBit/s max.
Plug Connector SUB-D-9
Function Update of Firmware and Preprogramming
Power consumption:
<10W/ 12V
Input voltage:
DC12V, alternating acurrent +/- 15%
Extern powersupply:
Input:
110-240V AC / 50-60Hz / 0, 6A
Output:
12V = /1A
Others:
Ambient Temperature +15° C...+35° C
Humidity<80%
