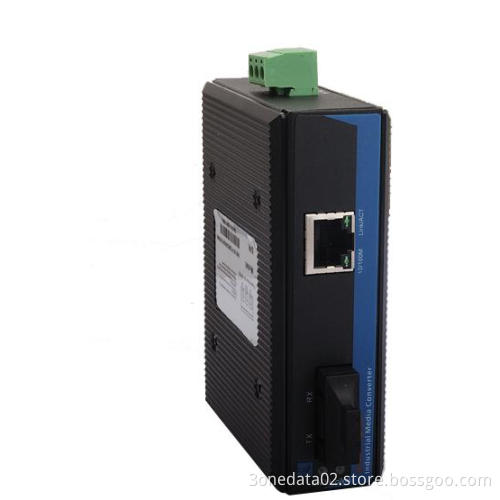

Industrial Grade Fiber Optic Media Converter

Features 1. IEEE802.3/802.3u/802.3x,store and forward 2. Plug-and-play, easy to installation 3. 10/100M, F/H duplex, MDI/MDI-X auto negotiation 4. -40 to 75C operating temperature range 5. Designed for industrial applications. IP30 protection, rugged high-strength metal case Introduction IMC101 is a speediness 10/100Base-TX Industrial Ethernet Media Converter, easy to connect server, repeater, switch, device to device, Can satisfy customers require for long distance, high speed, wide broadcast. Beside this, IMC101 support electric working mode/rate setting, LFP, DIP switch outside, plug-and-play. IMC101 series supports 1 TP ports and 1 fiber ports. TP(RJ45) support 10/100Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 100BaseFX supports single-/multi-mode, SC/ST connector, optional. IMC101 adopt industry standard design, IP30 protection, rugged high-strength metal case, power supply input(12V-36VDC), -40 to 75^oC working temperature. Specification Standards: comply with IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3 100Base-FX RJ45 port rate: 10/100BaseT(X) auto connection, F /H duplex or force work mode, and support MDI/MDI-X connection Fiber Ports: 100BaseFX ports (SC/ST connector, optional) Single-mode: 20, 40,60, 80, 120Km,optional Multi-mode: 2,5Km,optional Wavelength: 850nm, 1310 nm, 1550nm Typical 100Base-FX: Multi-mode:155Mbps, 1310nm, 2Km, average output is more than or equal to -18dBm, sensitivity is less than or equal to -35dBm Single-mode:155Mbps, 1310nm, 20Km, average output is more than or equal to -12dBm, sensitivity is less than or equal to -36dBm Power Input Voltage: 24VDC (12VDC~36VDC) Opposite connection protection Mechanical Dimensions: 103mm x 78mm x 32mm (H x W x D) Casing: IP30 protection, Metal case Weight: 350g Environmental Operating Temperature: -40 to 75^oC Storage Temperature: -45 to 85 ^oC Ambient Relative Humidity: 10% to 95% (non-condensing) Approvals EMI:FCC Part 15, CISPR (EN55022) class A EMS: EN61000-4-2(ESD), level 4 EN61000-4-3(RS), level 4 EN61000-4-4(EFT), level 4 EN61000-4-5 (Surge), level 4 EN61000-4-6 (CS), level 4 EN61000-4-8, level 4 EN61000-4-11, level 4 Shock: IEC 60068-2-27 PASS Free Fall: IEC 60068-2-32 PASS Vibration: IEC 60068-2-6 PASS Warranty: 5 years
