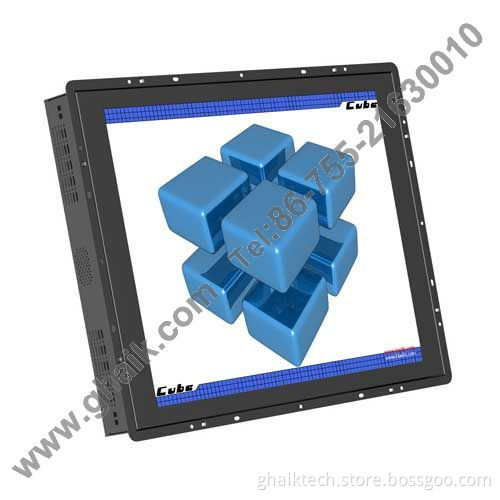

19 Inch Open Frame Touch Lcd Monitor

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 20 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Certificate:	EMI/EMC CE FCC Rohs

Product Description

=Product features=
  19 Inch Open Frame Touch Lcd Monitor
    Installation compatible with VESA, wallmount and wall-embedded
    1280 x 1024 Resolution,  250 / 450  cd/m2(Optional)
  VGA DVI Signal Input,  12V 4A Power Input
  Touch Screen  (Optional)
  Meet FCC, CE, CCC, RoHS Certification
  Operating Temp:0~50

Product Specifications

LCD
Panel Type	AUO LCD Panel (Optional)
Resolution	1280*1024
Display Area(mm)	376.32(H)*301.06(V)
Brightness	450nits
Contrast Ratio	1000:1
Colors	16.2M/262k colors
View Angle	85/85/85/85
Backlight Lifetime	50000
ODS Control	Auto Menu Select(+,-)Exit On/Off

Touch Screen
Type	Infrared Touch Screen(Optional)
Resolution(pixel)	4096*4096
Touch Transmittance	>90%

Interface
Signal Input	VGA+DVI(15 Pin D-sub/DVI-D Connector) AV Input/Video Input/Video Input/Audio Input(Optional)
Touch Connectors	USB / RS232(Optional)

Power
Power Input	DC12V/4A (50~61HZ)-DC Jack (2.0mm)
Power Consumption	is less than or equal to 36W

Mechanical
Material	Steel chassis
Mounting	Support VESA Wall Mount and Embedded Mount
Dimensions	460.6(H)362.6(V)51.5(D)

Environment
Operating Temp	-0~50
Storage Temp	-20~60
Relative Humidity	10~90% @40C^o Non-condensing without touch screen
Vibration	1G peak,5~500Hz(Random)
Shock	15G peak acceleration (11msec.duration)
Rating	Meet EMI/EMC CE FCC Rohs

Ordering Information
GHK-19OP-NC	19 Inch Open Frame Lcd Monitor
GHK-19OP-TC	19 Inch Open Frame Touch Monitor
