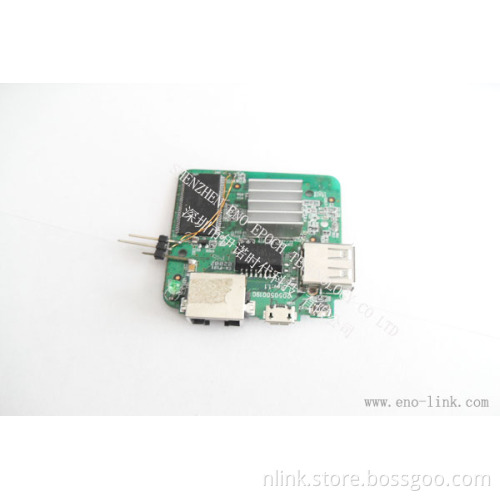

n-link Atheros AR9331 embedded 3G router module

Hardware Specifications

Configuration

                               CPU:400MHz

                               FLASH: SPI 4M(maximum support 16M)                           Memory: DDR 32M (maximum support 64M)

Agreement standard

                               802.11b,802.11g,IEEE 802.11n;

                               IEEE 802.3,IEEE 802.3u;

Wireless rate

                               150Mbps

Interface

1 10/100 m adaptive RJ45 port, support automatic flip (Auto MDI/MDIX);

1 USB interface;

1 mini usb power interface; Wireless rate

Button

                               Reset

Power

                               DC 5V 1A

Size

                               50mmx50mm

Wired Function

Network Settings

WAN joint type automatic detection;

WAN joint type support: PPPoE, dynamic IP, static IP;

static routing;

DHCP Setting

DHCP server.

DHCP client;

client list;

static address assignment;

Security Settings

IP and MAC address binding anti ARP attack;

IP address filtering;

domain filtering;

MAC address filtering;

DoS attack prevention;

FLOOD attack prevention;

Ping bag control;

System tools

Flow statistics;

system security log;

remote Web management;

configuration files import and export;

TFTP software upgrade;

TTL com upgrade;

Telnet management;
