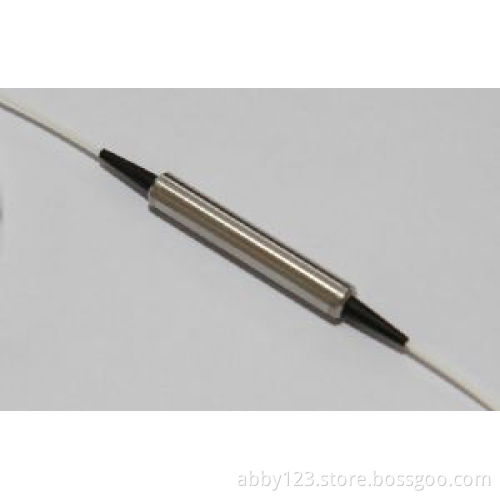

Polarization Insensitive Optical Isolator
Polarization Insensitive Optical Isolator
Feature
High Isolation
Low Insertion Loss
High Return Loss
Low Polarization Sensitivity
Applications
Fiberoptic Amplifiers
CATV Fiberoptic Links
Fiberoptic Systems Testing
Fiberoptic LAN Systems
Telecommunications
Performance Specifications
(Standard) Single Stage
|
Parameter |
P Grade |
A Grade |
|
Operating Wavelength (nm) |
1310 or 1550 |
|
|
Typical Isolation (dB) |
40 |
40 |
|
Minimum Isolation (dB) |
30 |
28 |
|
Typical Insertion Loss (dB) |
0.35 |
0.45 |
|
Maximum Insertion Loss (dB) |
0.5 |
0.7 |
|
Return Loss (In/Out) (dB) |
65/60 |
55/55 |
|
PDL (dB) |
0.05 |
0.1 |
|
PMD (dB) |
0.2 (0.05 available upon request) |
|
|
Bandwidth (nm) |
-15 to +15 |
|
|
Operating Temperature () |
-5 to +75 |
|
|
Storage Temperature () |
-40 to +85 |
|
|
Fiber Type |
Corning SMF-28 |
|
|
Fiber Length (Min.) |
1 meter each end |
|
|
Package Dimension (mm) |
5.5 x L30 |
|
|
Power Handling (mW) |
500 |
|
(Standard) Dual Stage
|
Parameter |
P Grade |
A Grade |
|
Operating Wavelength (nm) |
1310 or 1550 |
|
|
Typical Isolation (dB) |
56 |
50 |
|
Minimum Isolation (dB) |
45 |
42 |
|
Typical Insertion Loss (dB) |
0.5 |
0.5 |
|
Maximum Insertion Loss (dB) |
0.7 |
0.8 |
|
Return Loss (In/Out) (dB) |
65/60 |
55/55 |
|
PDL (dB) |
0.05 |
0.1 |
|
PMD (dB) |
0.05 |
|
|
Bandwidth (nm) |
-30 to +30 |
|
|
Operating Temperature () |
-5 to +75 |
|
|
Storage Temperature () |
-40 to +85 |
|
|
Fiber Type |
Corning SMF-28 |
|
|
Fiber Length (Min.) |
1 meter each end |
|
|
Package Dimension (mm) |
5.5 x L30 |
|
|
Power Handling (mW) |
300 |
|
1. At 23 over bandwidth
2. Not include connector, splice and fiber-end Fresnel losses.
3. Including PDL, operating wavelength range, -5 to +75 .
Ordering Information
|
XX |
XX |
X |
X |
X |
X |
XX |
|
Isolator Type |
Wavelength |
Grade |
Pigtail Style |
Fiber Length |
Package |
In/Out Connector |
|
IS=Single stage ID=Dual stage |
13=1310nm 4=1480nm 5=1550nm LB=L Band |
S=Super P=Premium A=Grade A |
1=Bare Fiber 2=900um jacket |
1=1.0m 2=1.5m 3=2.0m 4=Custom length |
B=B type |
0=none 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST 6=LC |
